Description
N0225F
225W 24V Solar Panel (unregulated)

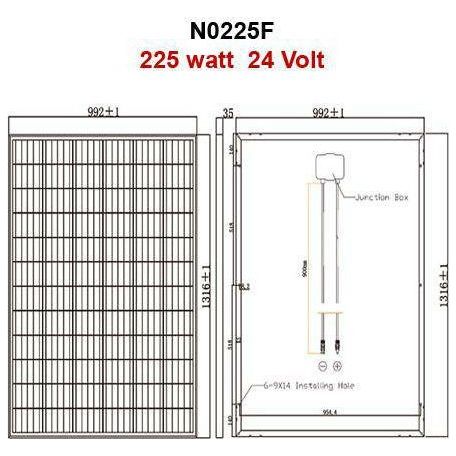

992 x 1316 x 35 mm
225W 24V Solar Panel (unregulated)
992 x 1316 x 35 mm

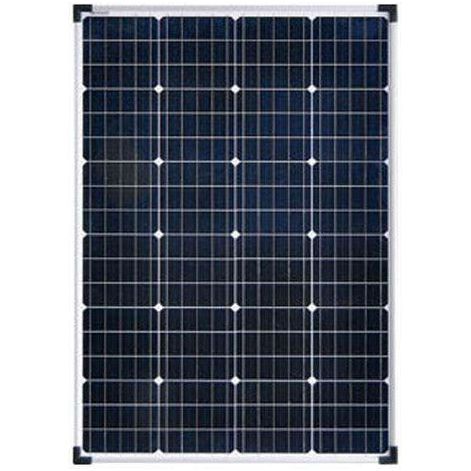

This quality 225W 24V monocrystalline solar panel module is designed for direct connection to a solar charge controller for use in remote power systems. This model is suitable for use in 24V battery systems or grid connected systems, large commercial solar installations etc. It is constructed with an extruded aluminium framing and tempered dust resistant glass panel for installation in the most demanding of Australian conditions. Backed by a 25 year output warranty and a 5 year manufacturer defect warranty these panels are manufactured to a high standard by one of the worlds leading suppliers since 1992.
Typical applications: - 24V battery systems - Grid connect solar power systems - Commercial rooftop PV systems - Off-grid house remote power.
Typical applications: - 24V battery systems - Grid connect solar power systems - Commercial rooftop PV systems - Off-grid house remote power.
- Maximum power: 225W
- Nominal voltage: 24V
- Short circuit current (ISC): 6.44A
- Open circuit voltage: 43.20V
- Maximum power current (IMP): 6.25A
- Maximum power voltage: 36.0V
- Connection: MC-4 Plug
- Dimensions: 992 x 1316 x 35 mm
- Operating temperature: -40°C to +85°C
- Shipping Weight: 16.40000Kg
- *Specifications are subject to change without notice
