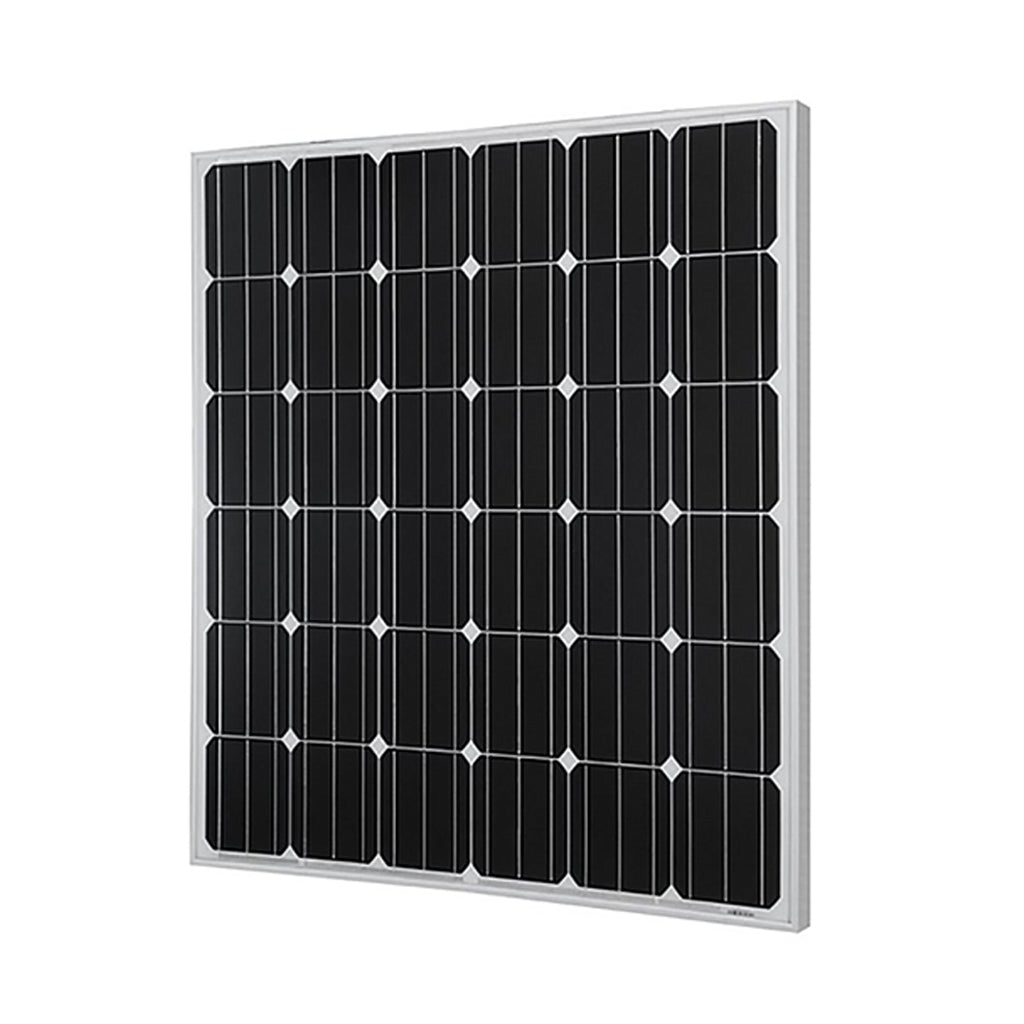

Victron solar panels:
Victron solar panels are made using high quality Polycrystalline & Monocrystalline cells. Victron provide a full range of solar panel modules ranging from 20W - 360W.
They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.
Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances.
It's important to over size your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping
Features:- Low voltage-temperature coefficient enhances high-temperature operation. - Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year Limited warranty on materials and workmanship.

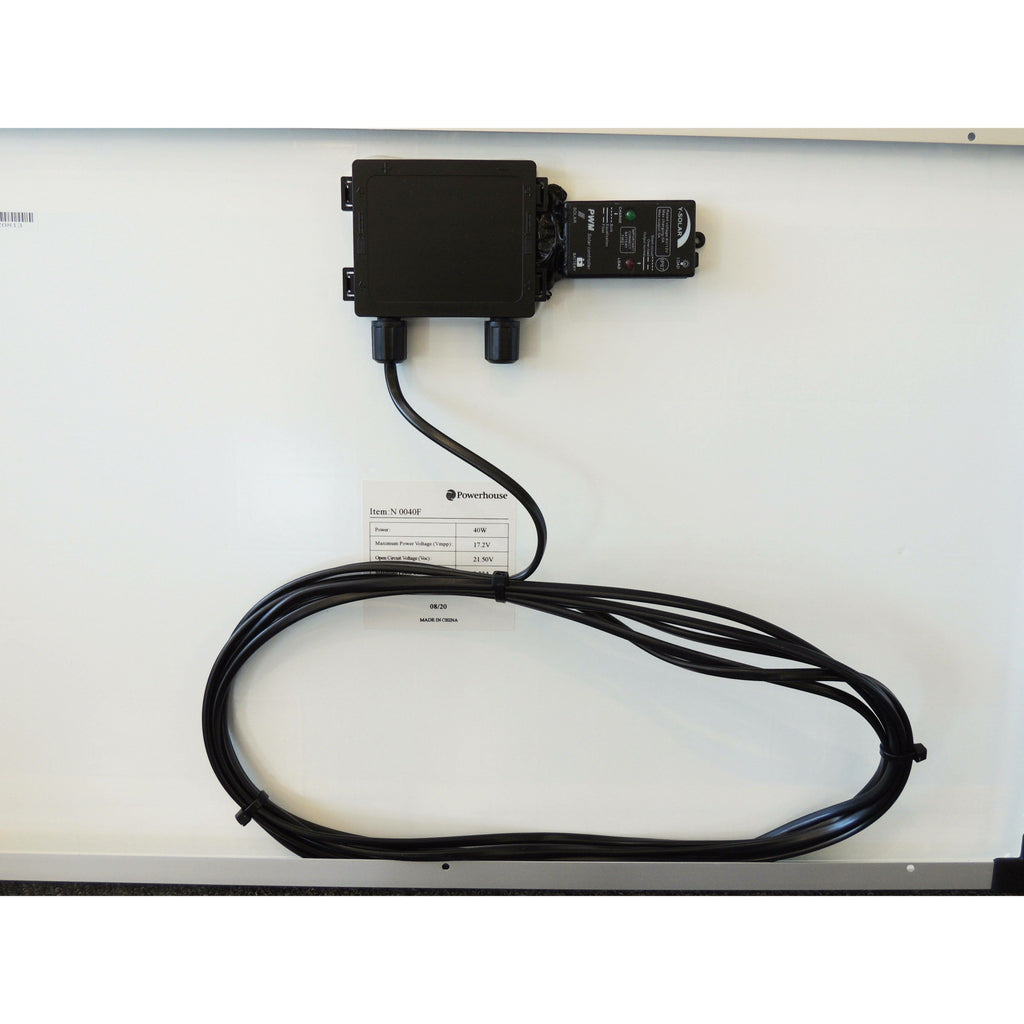

- Sealed, waterproof, multifunctional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. - Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with PV-ST01 connectors.
-
Specifications
Model
SPM040401200
Cell type
Monocrystalline
Number of cells in series
36
Nominal power (Watts)
40
Open Circuit Voltage (Volts)
22.45
Maximum Power Voltage (Volts)
18.3
Short Circuit Current (Amps)
2.40
Maximum Power Current (Amps)
2.19
Power (Max.)
40W
Temp Range
-40 to +85°C
Length of cable / connector
No cable
Power Tolerance
±3%
Maximum system voltage
1000V
Size (LxWxH)
425 x 668 x 25mm
Weight
3.1kg
Warranty
-Electrical performance-Product warranty
10 years 90% +25 years 80% of power output
5 Year product Warranty
- *Specifications are subject to change without notice
