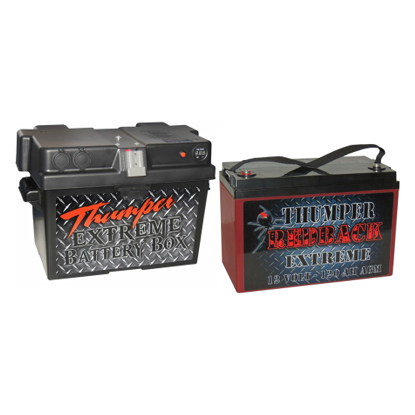

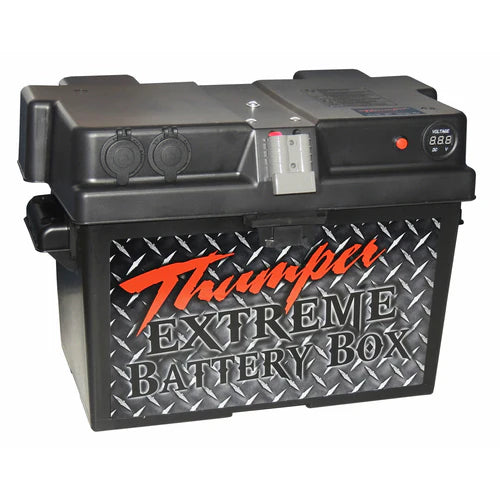

This unique battery box design is packed with numerous features and outlet sockets to accommodate for every individual. Please feel free to browse our range for a battery box that will suit your application.
|

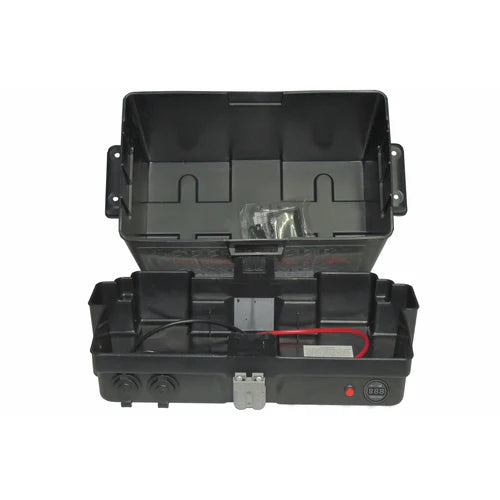

All Battery Box models include the following components:
1 x LCD Digital Volt meter gauge
Allows for accurate voltage reading of your battery (3volt ~ 30 Volts)
1 x Hold down push button switch
- used for Volt gauge
1 x 50 Amp Automatic reset circuit breaker
- Control the 50 Amp Anderson connector on front & the sockets
1 x 50 Amp Anderson connectors
(wired as both inlet or outlet)
- All internal cabling to allow you to simply connect straight to the battery terminals
|

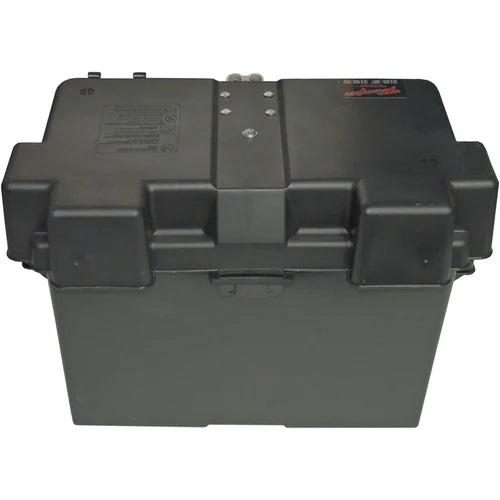

Internal Dimensions of Battery Box
Length - 330mm
Width - 175mm
Height - 225mm
External Dimensions of Battery Box
Length - 410mm
Width - 260mm
Height - 280mm
* Dimensions includes all protruding outlet sockets *
MADE IN SOUTH AUSTRALIA
BY BLUE APPLE THUMPER
|
Choose between one of the following 2 x combinations of sockets
FOR YOUR BATTERY BOX:
|
BB - BLACK
2 x Cigarette
1 x Volt Gauge
|
BB - PINK
1 x Cigarette
1 x Dual USB
1 x Volt Gauge
|

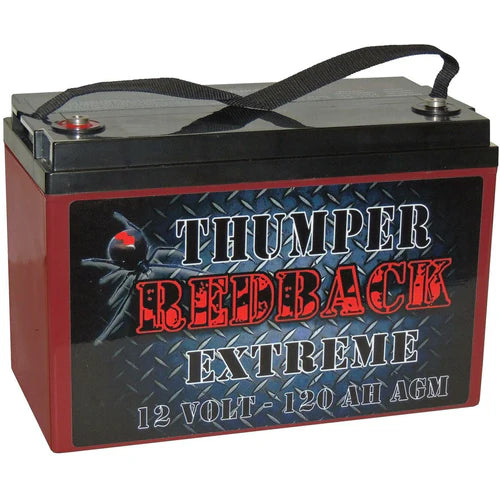

EXTREME 120 AH AGM Deep cycle
If you are in the market for an Extreme deep cycle then look no further then the Redback Extreme AGM!
This heavy duty AGM battery is the perfect option for the use in Caravans, Motor homes, Camper trailers or even as a second under bonnet battery.
The Redback Extreme takes the technology of an AGM battery to a whole new level! Built with heavier internal lead plates, this battery is designed for continual discharge for heavy draw appliances. Its bonded element design allows for strength against corrugated or rough terrain, making it vibration resistant and the perfect choice for an off – road battery!
Whilst the Redback Extreme is not designed as a primary cranking battery (like the Thumper Redback hybrid), it does still hold the capacity to start up to a 10Lt diesel engine. The Extreme is designed as a secondary battery rather than a primary starting battery. The perfect combination for an under bonnet dual battery system would encompass the Thumper Redback (either 100 Ah or 120 Ah) as the starter battery and the Redback Extreme (either 100 Ah or 120 Ah) as the secondary battery.
Due to design of the heavier internal plates within the Extreme battery, it allows for rapid discharge and recharge of heavy draw appliances to be continually used.
Due to the internal characteristics of the battery, the Redback Extreme will allow for longer life over that of a standard AGM battery.
- Maintenance Free
- Leak Proof
- Rapid recharge rate due to a low internal resistance
- Can reach full recharge within 2 – 3 hours from alternator
- Excellent standby use
- Excellent long term storage
- Heat resistant
- Vibration resistant due to bonded element design
The Thumper Redback has a self discharge of less than 5 % per year
(wet cell batteries discharge approx 3 – 4 % per week)
Maximum discharge current - 1250 Amp 5 seconds
Maximum charging current - 36 Amps
Float charging voltage – 13.6 – 13.8 Volts @ 25⁰C
Heavy Duty ABS case suitable for under bonnet use
- Completely sealed – can be mounted on any side
- Can be mounted in sealed compartment
- Under bonnet use
- Superior discharge ability compared to a wet cell
- High CA output
- Up to 5 times faster recharge than a wet cell battery
- Full 2 year manufacturer warranty!
Discharge Rate Ah Capacity
20 Hour Rate 128 Ah
10 Hour Rate 120 Ah
5 Hour Rate 104 Ah
1 Hour Rate 85 Ah
EXTREME 105 AH AGM Deep cycle
The Redback Extreme takes the technology of an AGM battery to a whole new level! Built with heavier internal lead plates, this battery is designed for continual discharge for heavy draw appliances. Its bonded element design allows for strength against corrugated or rough terrain, making it vibration resistant and the perfect choice for an off – road battery!
Whilst the Redback Extreme is not designed as a primary cranking battery (like the Thumper Redback hybrid), it does still hold the capacity to start up to a 10Lt diesel engine. The Extreme is designed as a secondary battery rather than a primary starting battery. The perfect combination for an under bonnet dual battery system would encompass the Thumper Redback (either 105 Ah or 120 Ah) as the starter battery and the Redback Extreme (either 105 Ah or 120 Ah) as the secondary battery.
Due to design of the heavier internal plates within the Extreme battery, it allows for rapid discharge and recharge of heavy draw appliances to be continually used.
Due to the internal characteristics of the battery, the Redback Extreme will allow for longer life over that of a standard AGM battery.
- Maintenance Free
- Leak Proof
- Rapid recharge rate due to a low internal resistance
- Can reach full recharge within 2 – 3 hours from alternator
- Excellent standby use
- Excellent long term storage
- Heat resistant
- Vibration resistant due to bonded element design
The Thumper Redback has a self discharge of less than 5 % per year
(wet cell batteries discharge approx 3 – 4 % per week)
Maximum discharge current - 1100 Amp 5 seconds
Maximum charging current - 30 Amps
Float charging voltage – 13.6 – 13.8 Volts @ 25⁰C
Heavy Duty ABS case suitable for under bonnet use
|
- Completely sealed – can be mounted on any side
- Can be mounted in sealed compartment
- Under bonnet use
- Superior discharge ability compared to a wet cell
- High CA output
- Up to 5 times faster recharge than a wet cell battery
- Full 2 year manufacturer warranty!
Discharge Rate Ah Capacity
20 Hour Rate 105 Ah
10 Hour Rate 100 Ah
5 Hour Rate 94 Ah
1 Hour Rate 73 Ah
|
Weight – 29.5kg
Length – 305mm
Height – 220mm
Width – 175mm
2 Year Warranty
