Description
Are you looking for a light weight portable battery option with
- Digital Volt meter reading of input / output loads
- BLUETOOTH connectivity to monitor battery condition
- In built 300 watt Pure sine Inverter to run 240v appliances
- Anderson connector for charging or discharging
- Multiple 12 volt connections!
- 240 Volt Battery charging
- Less than $ 1,000.00!
Look no further then this package!

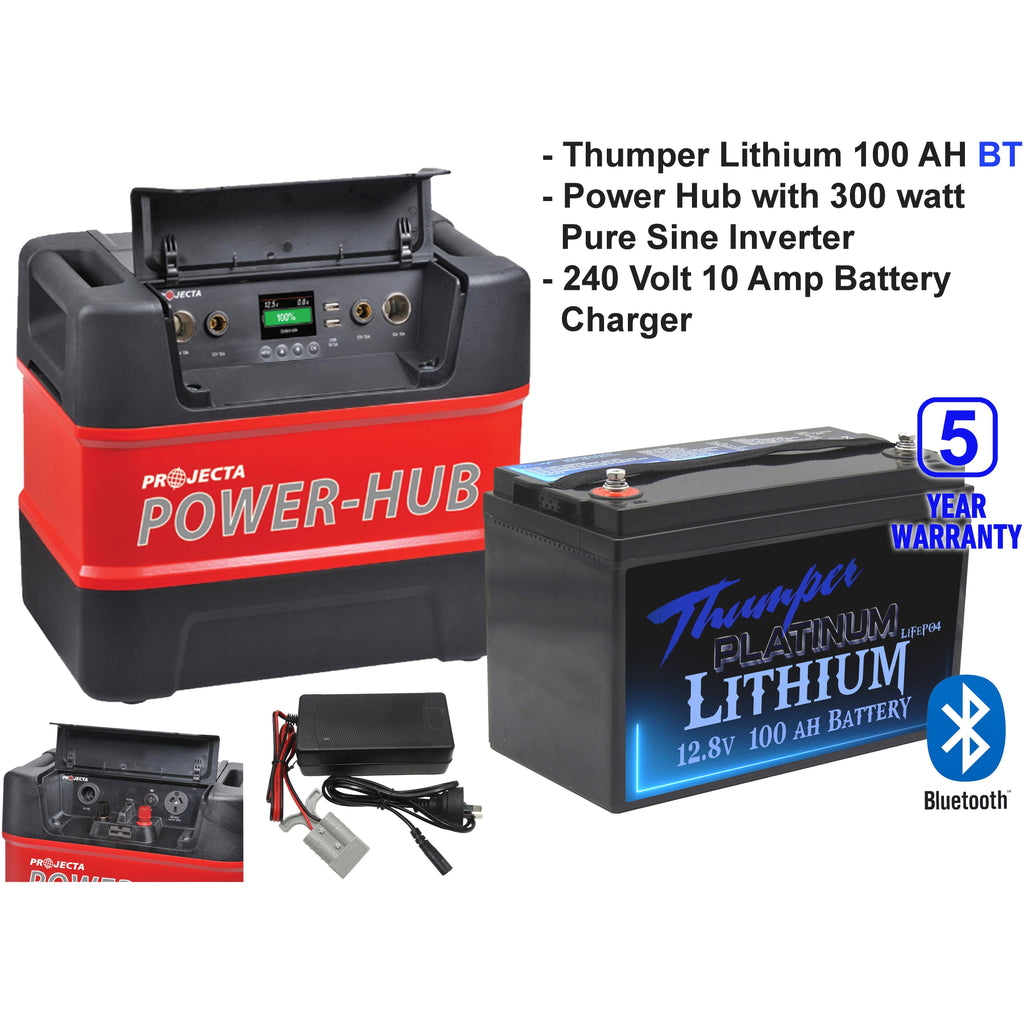

We have coupled the 100 AH Thumper Lithium battery with the Projecta Battery Hub in order to offer a versatile option for a portable battery system!
 |
 |
With an in built 300 watt Inverter, this package will allow you the option to run appliances such as:
- Sleep apnea machines
- Charge laptops / phone chager
- Run small TV or gaming devices
- Run your compressor fridge
- and more!
How can you monitor your battery condition?
This package includes a 100 AH Lithium battery. The battery is built with internal Bluetooth monitoring - monitor directly from your smart phone or smart device via a free downloadable app! The app will tell you exactly how much power you have remaining!

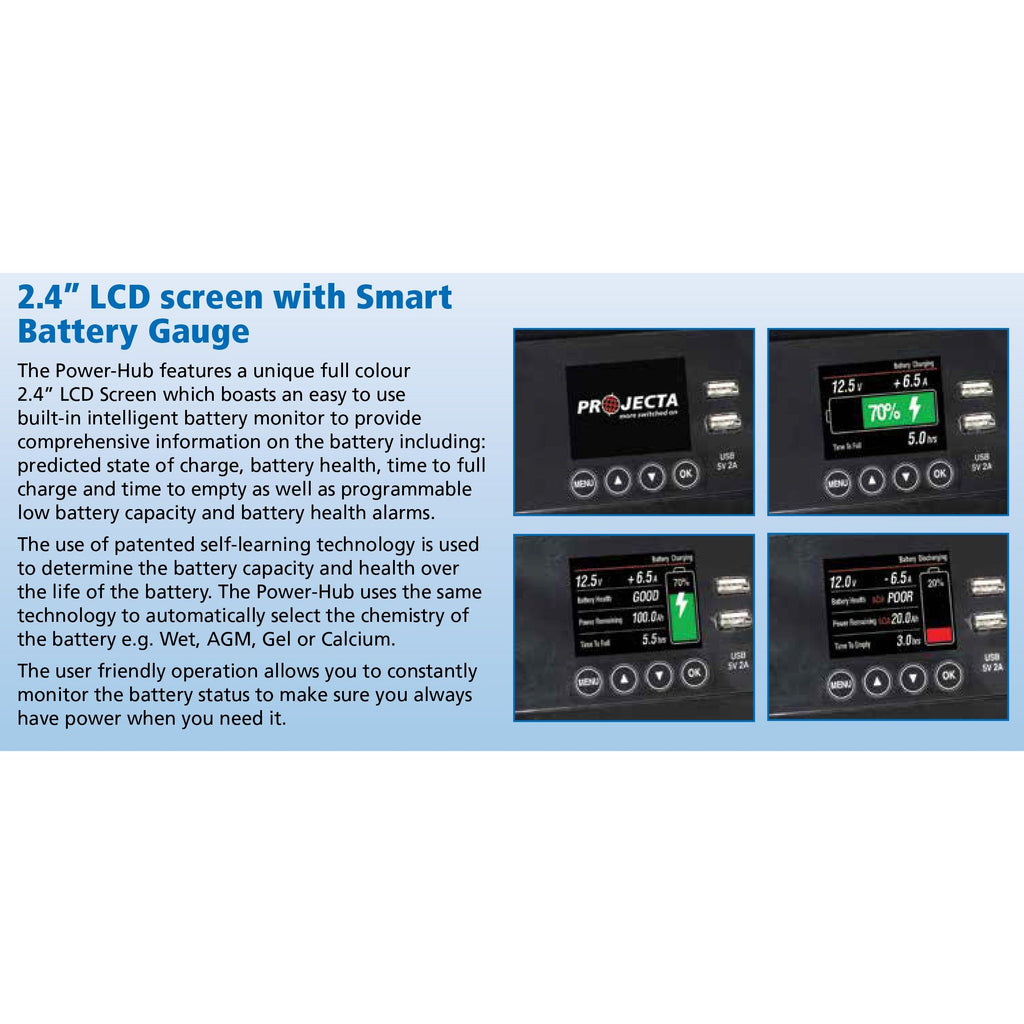

Not in to apps? No problem! The Projecta PowerHub has a digital Volt meter in built to allow you the option to monitor the state of charge direct from there!
Note: It is recommended to take the exact battery reading from the Bluetooth app. The display meter on the box should be used as a guide only when running lithium batteries.
How long can I run my fridge from this package?
40 - 50 Lt compressor fridge: approx 3 - 4 days
50 - 60 Lt compressor fridge: approx 2 - 3 days

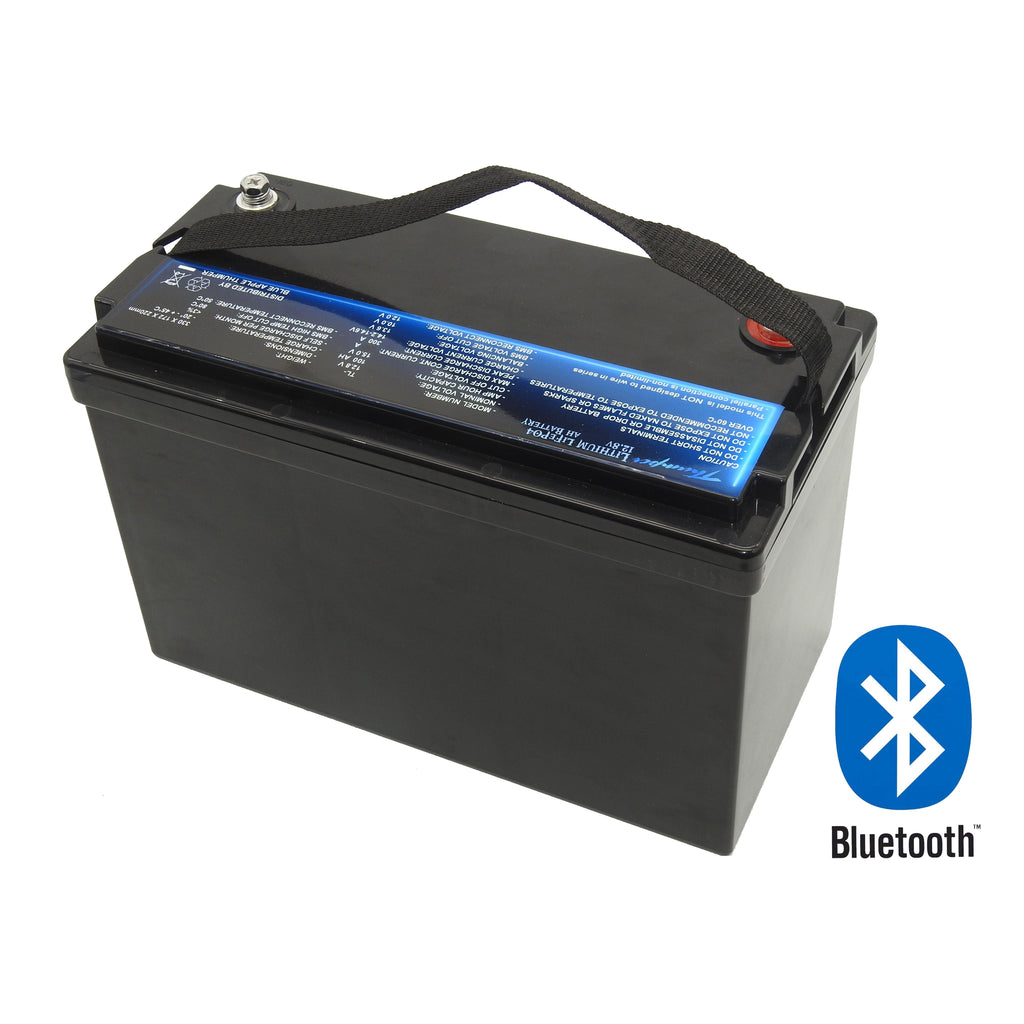

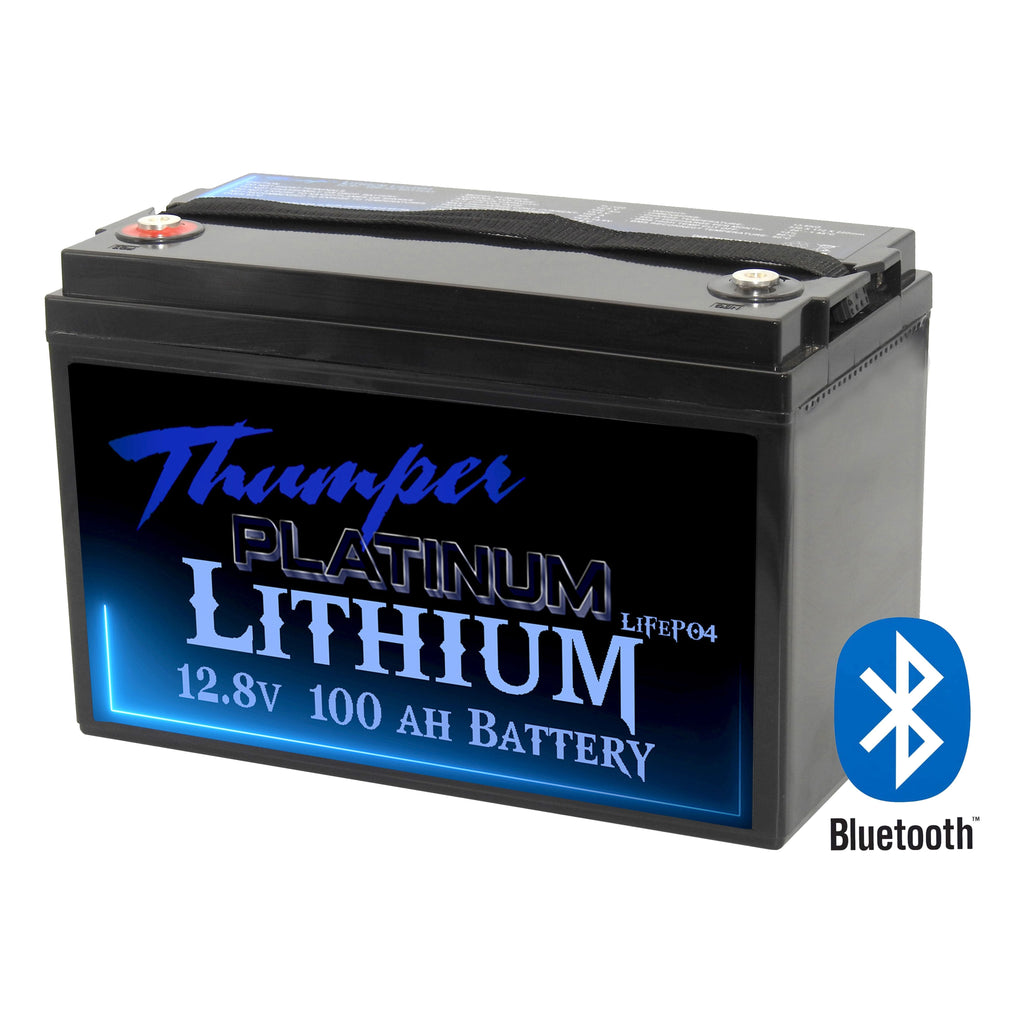

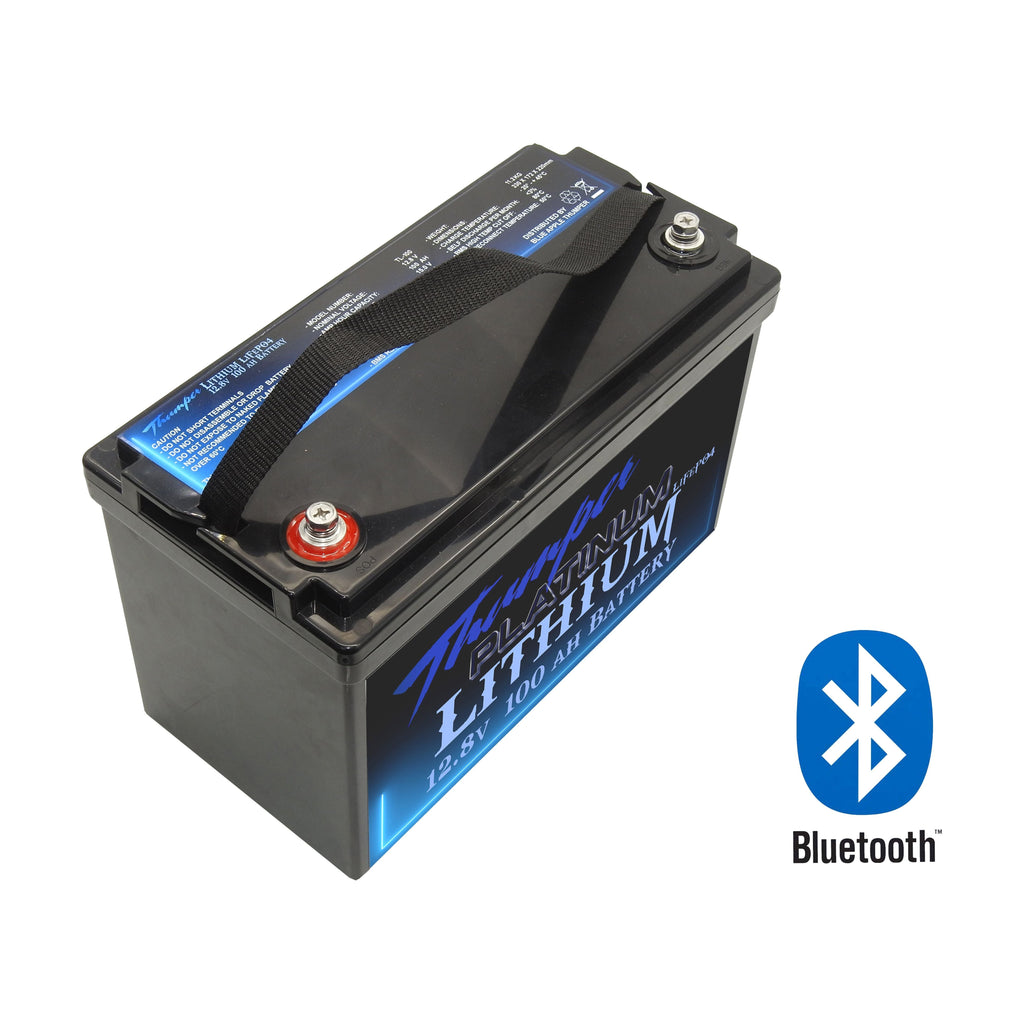

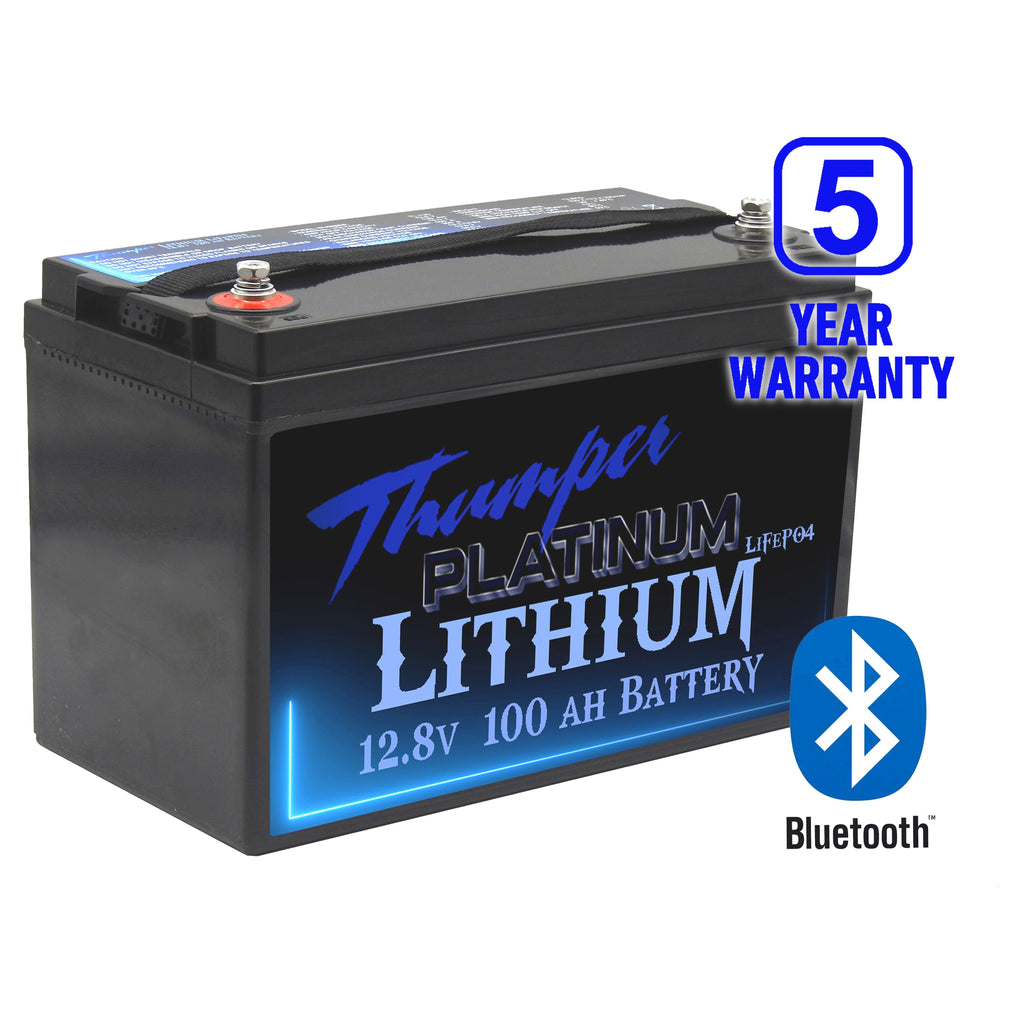

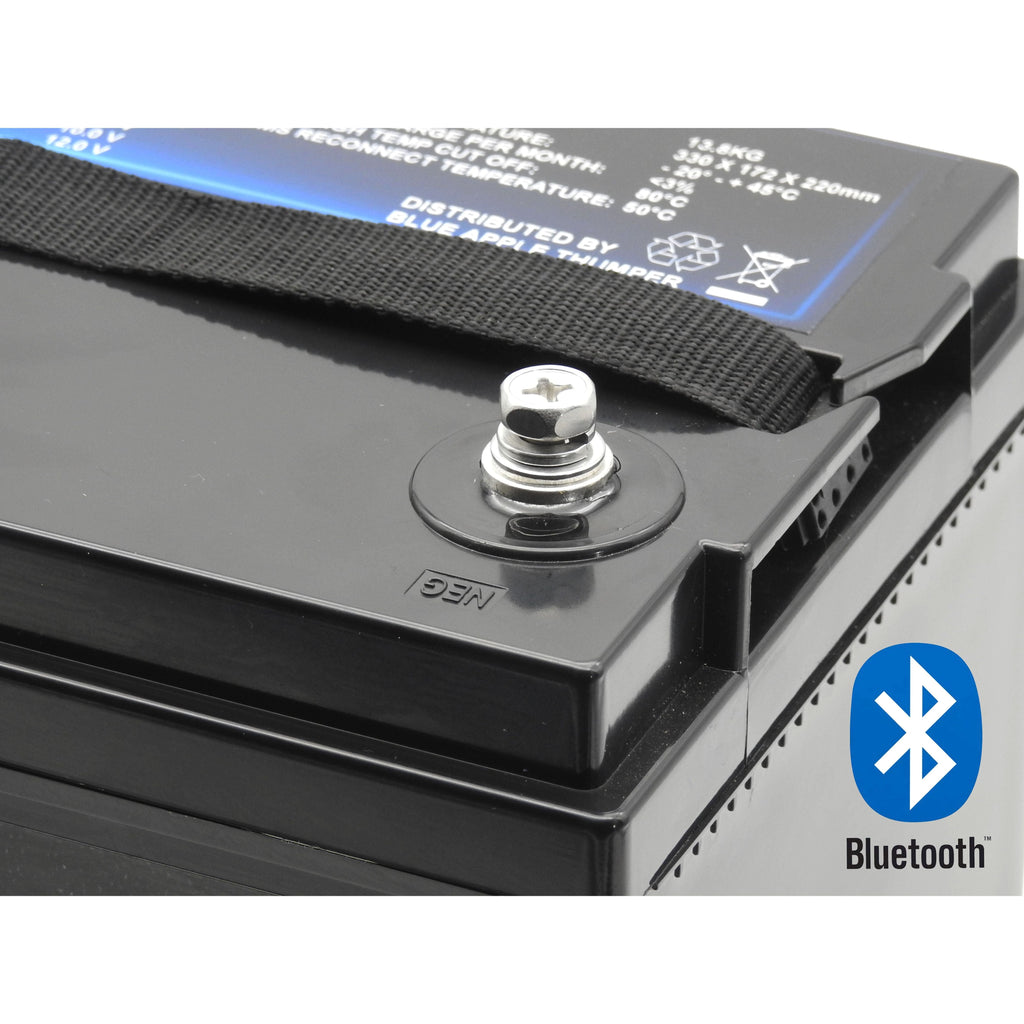

Thumper Lithium 100 AH - Bluetooth

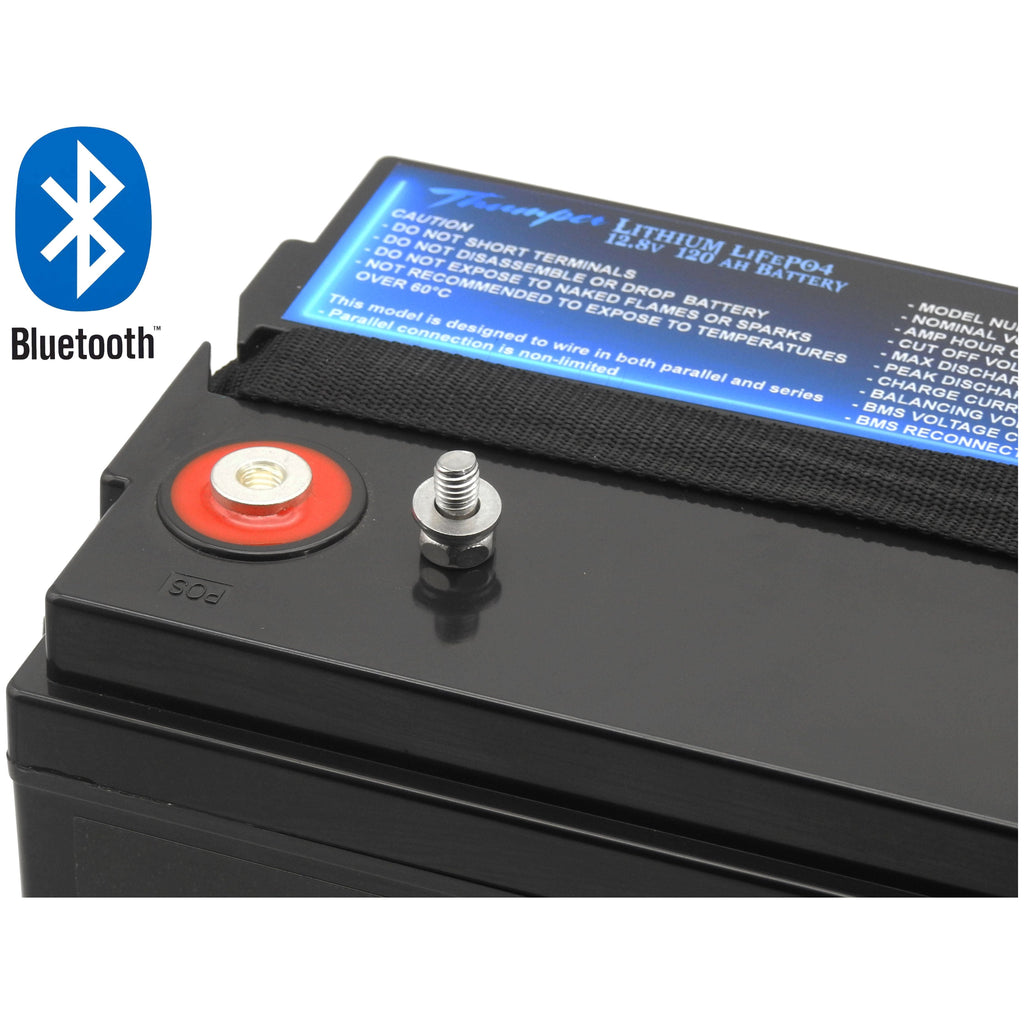

Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.
Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.
The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.
These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.
Click HERE to download the Thumper Spec sheet
These batteries are quality! Check out the internal BMS on this battery compared to cheaper brands
Features:
• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired parallel
• Parallel connection is non-limited
• This battery is NOT designed for series linking
• This battery is NOT designed for starting purposes or under bonnet applications
• In built Bluetooth monitoring system!
Technical Specifications:
| Model No. | TL-100BT |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 100 AH |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Bluetooth |
Yes |
Dimensions and Weight:
| Length | 328 mm |
| Width | 172 mm |
| Height (Total) | 220 mm |
| Weight | 11.2 Kg |
Operating Temperature Range:
| BMS High temp cut out / Reconnect | 80˚C / 50˚C |
| Discharge | -20˚C ~ 60˚C |
| Charge | -20˚C ~ 45˚C |
| Storage | -5˚C ~ 35˚C |
Charging Methods:
| Recommended Charge Current | 10 ~ 50 Amps |
| Max Charge Current | 70 Amps |
Discharge:
| Max discharge current (continuous) | 100 Amps |
| Peak discharge current (1-3 seconds) | 300 Amps |
| BMS Current cut off | >100.5A 10s |
| BMS Current cut off | >120.0A 3s |
| BMS Current cut off | >150.0A 1s |
| BMS Voltage cut off / Reconnect | 10.0V / 12.0V |
| Self Discharge per month: | ≤3% |
| Warranty | 5 years from date of purchase | as of June 2023 |
Bluetooth APP:
The App offers the ability to monitor and control:
|
|
Bluetooth App | Home screen - explained:
Bluetooth App | Control Screen - Explained:
The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.
Simply go into the CONTROL panel of your Bluetooth App and press:
CHARGE SWITCH - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.
DISCHARGE SWITCH - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
The Thumper is a Lithium LiFePO4 Prismatic battery.
Yes! The Thumper Lithium is designed to be continually charged and discharged fr the purposes of running all accessories, such as fridges, lighting, inverters and more.
Both the Thumper Lithium 100 AH & 120 AH have a continual discharge rate of 100Amps (1200watts). The batteries also have a MAX peak discharge of 300 Amps for 1-3 seconds (surge capacity).
This means that if you are using only one battery, then the maximum Inverter size that would successfully run on the Thumper 100 AH / 120 AH would be a 1200watt.
How many batteries do I need to run my Inverter?
150 watt Inverter ~ 1200 watt Inverter = 1 Battery
1201 watt Inverter ~ 2400 watt Inverter = 2 Batteries
2401 watt Inverter ~ 3600 watt Inverter = 3 Batteries
What would happen if I run over the 100 Amps discharge rating?The Thumper Lithium is protected internally with a BMS (Battery Management System), meaning that it will protect the battery against overcharge / low voltage and excessive discharge drain.
Example: If you connect a 2000 watt Inverter (166Amp total draw) to the Thumper Lithium battery, then the battery would allow you to run UP TO 1200watts (100Amps) from the Inverter. If the draw exceeded this 100 Amps, then the BMS inside the battery would disconnect and cease providing power to your system.
Once the load has been disconnected from the battery, the BMS will reconnect itself within a few seconds and the battery will be ready to use again.
Can I mount the Lithium battery on its side?Yes! The Lithium battery is completely sealed and is designed to allow you to mount on any side.
As with any Lithium battery, it is recommended (when possible) to use a lithium battery charger. Lithium Battery charger chargers charge the battery at a slightly higher voltage and run through compatible charging stages to suit the Lithium's chemistry. Charging your battery with a Lithium compatible charger will help to prolong the life of your Lithium battery by ensuring it is receiving a full rate of charge.
In stating the above, the Thumper Lithium range of batteries are designed to be able to charge from an AGM battery setting.
Can I use my portable solar panel on the Thumper Lithium Battery?The Thumper Lithium is designed to charge from any system that is compatible to charge from either a Lithium or AGM setting.
Providing your solar regulator is designed to suit Lithium or AGM chemistry, then it would be perfectly suitable to charge from your portable solar panel.
The Thumper Lithium Battery will not charge from an unregulated panel as the internal BMS will disconnect any input charge that exceeds 15 Volts.
What is the life expectancy of the Thumper Lithium battery?The Thumper Lithium is rated over cycles. A cycle is the process of charging and discharging the battery. The Thumper Lithium is rated to a minimum of 2000 cycles.
Yes! Both the Thumper 100 AH & 120 AH are designed to be wired in parallel and are non-limited. This means you can build your 12 volt system as large as you desire with use of these batteries!
Can I link a Thumper Lithium 100 AH to a 120 AH ?
No. As the BSM is different in both the 100 AH and the 120 AH, it means the two batteries are not designed to be linked to one another.
Can I wire the Thumper Lithium in Series?Wiring in series converts a 12 Volt battery into either a 24Volt / 36Volt or 48Volt system (depending on how it is wired)
The Thumper 100 AH is designed to run in series from 12-48V max 4 in series, no limit in parallel.
No.
Approx 13.2 ~ 13.4 Volts is 100% charged in a Lithium battery.
The Thumper Lithium 100 AH now comes includes a in built BLUETOOTH monitoring device. Simply download the free Bluetooth app to accurately monitor the state of charge in a Lithium battery set up.
Using voltage to monitor the state of charge in a lithium battery is unfortunately not accurate.
As the voltage in a lithium battery remains higher throughout the cycle life of the battery, it means that Thumper Lithium will read in the 12's when it is nearing the end of it's capacity. When the remaining capacity of the battery has been exhausted, the battery's BMS will disconnect and the battery will shut down.
The short answer to this is Yes, and No.
A voltage meter will provide you an 'indication' on the state of charge on a lithium battery. However, the slightest change in the digital reading of voltage can mean over 50% of your battery's capacity.
The most accurate method to monitor a lithium battery is by the use of the free bluetooth app available in your App store.
Much the same as how a lead acid battery is configured, The Thumper lithium battery is constructed using a multiple of smaller cells linked internally.
Now with 5 year warranty from date of original purchase | as of June 2023

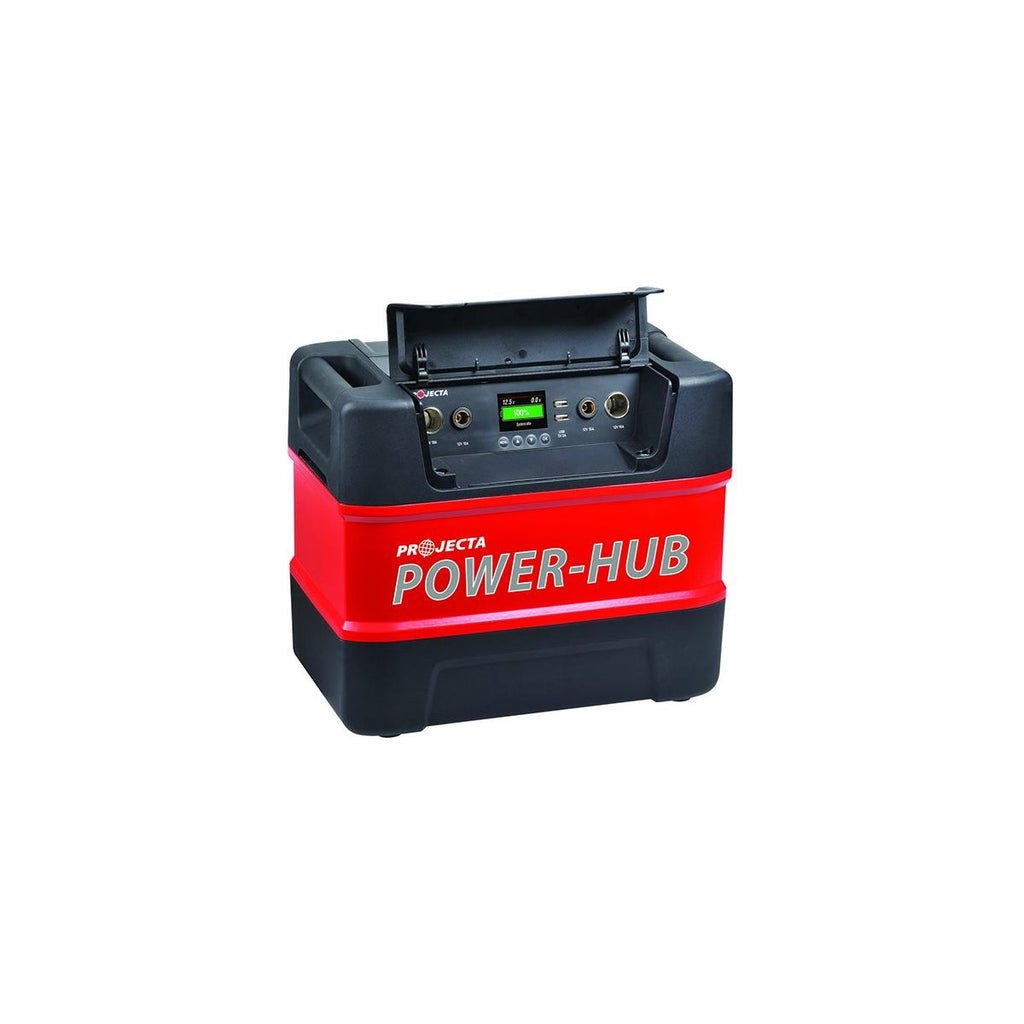

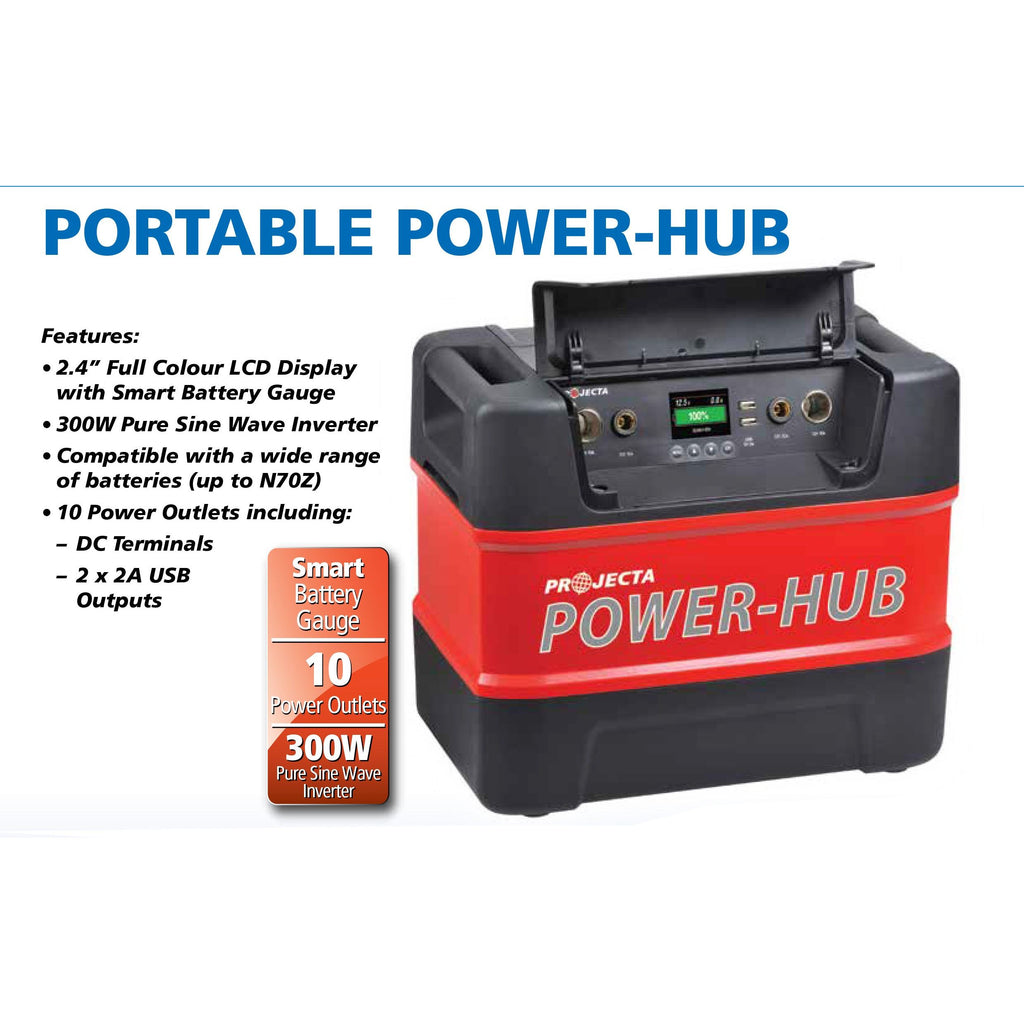

Power-Hub turns your battery into a versatile user friendly option for powering and charging a wide range of accessories and appliances while you are off the grid.
It is the ideal alternative to a conventional dual battery system, giving you the freedom to take power away from your vehicle.

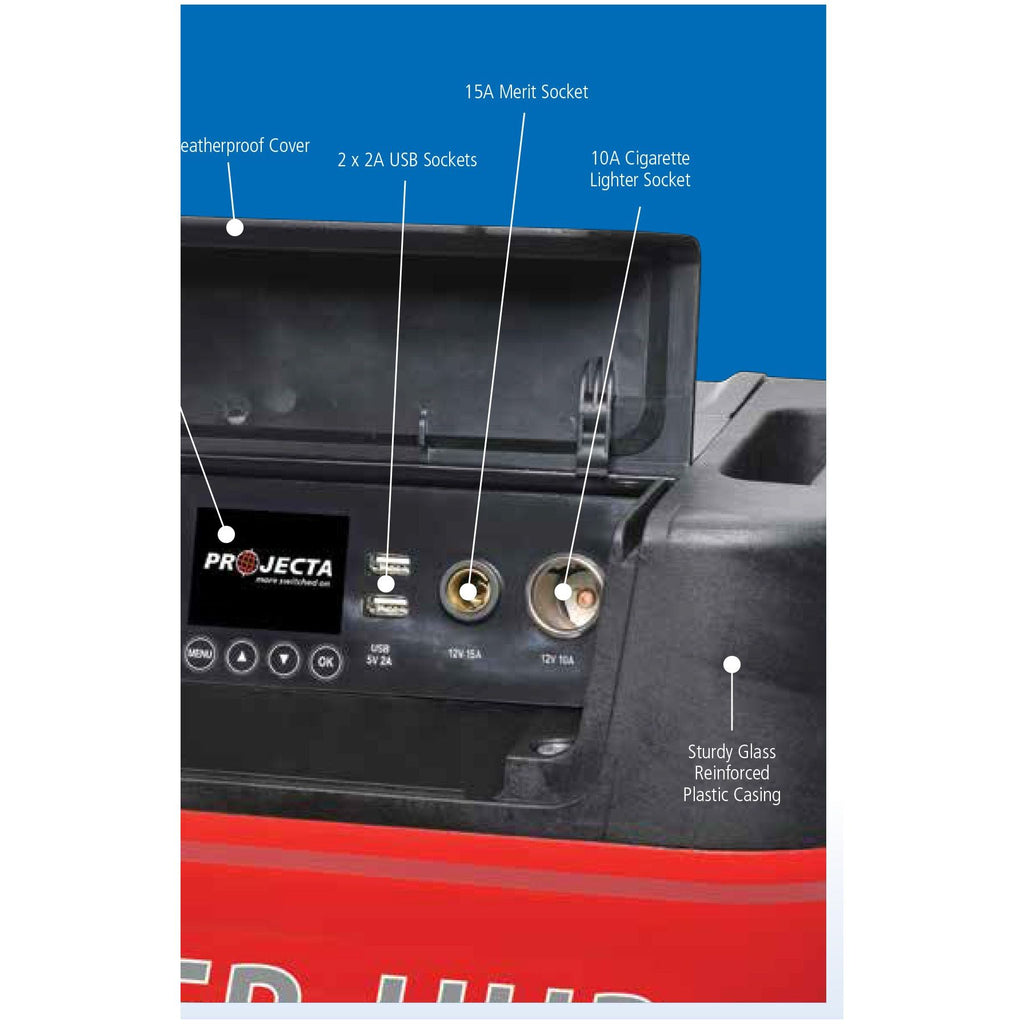

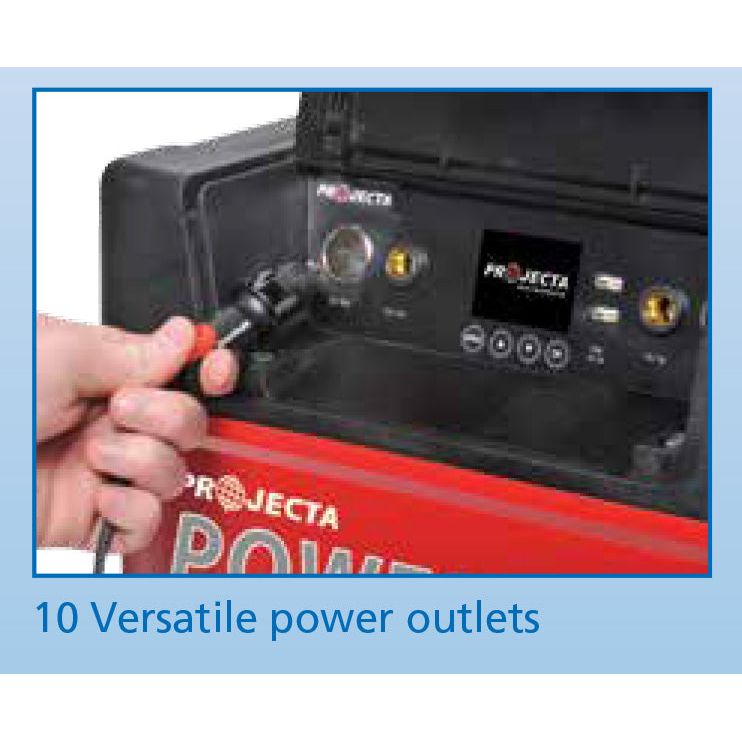

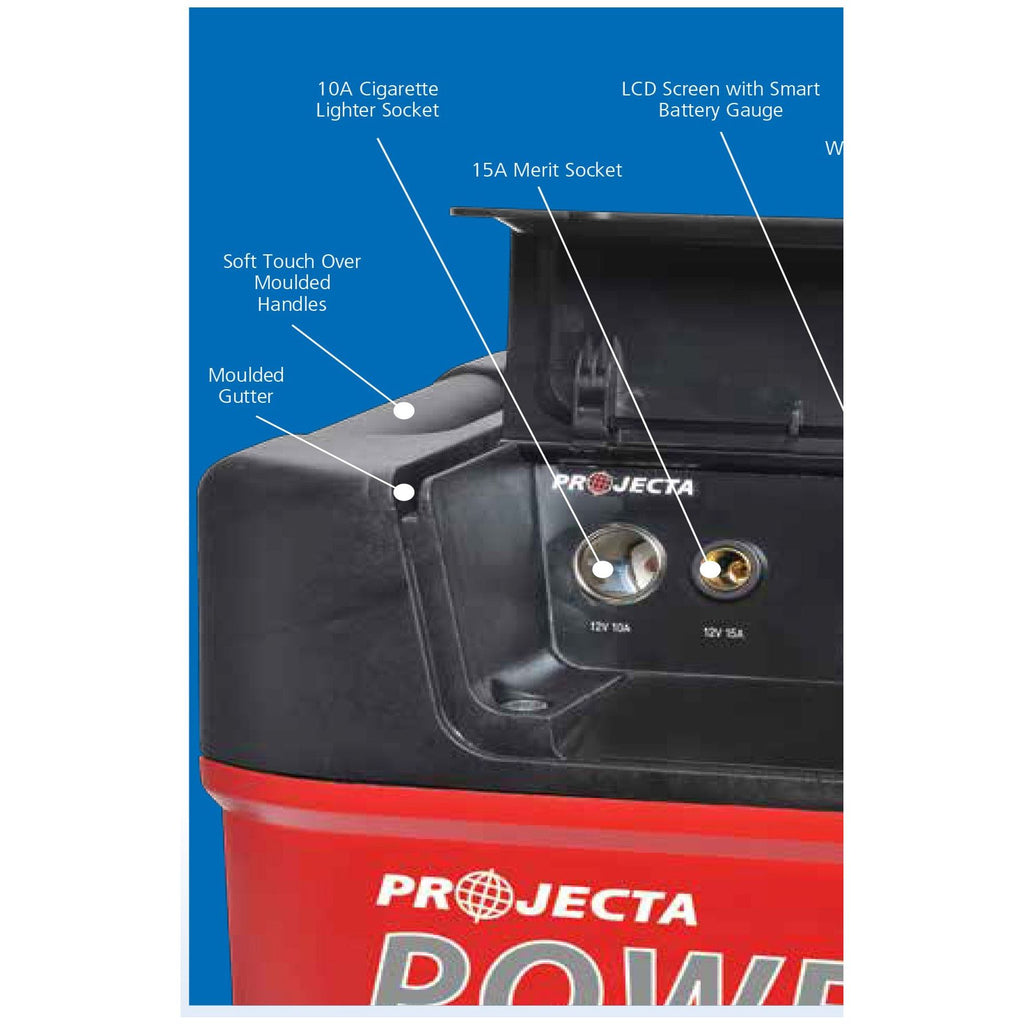

Features:
- Digital display screen
- 2 x Cigarette sockets
- 2 x Merit sockets
- 2 x USB Sockets
- 1 x Engel fridge outlet
- 50 Amp Anderson connector
- In built PURE SINE 300 watt Inverter
This is the perfect camping unit to allow you the versatility to run:
- Laptops
- Phone chargers
- Recharge Camera Batteries
- Recharge docking stations
- Run Sleep app machine
- Fridges
- Lighting
- All other 12 volt appliances
