Description

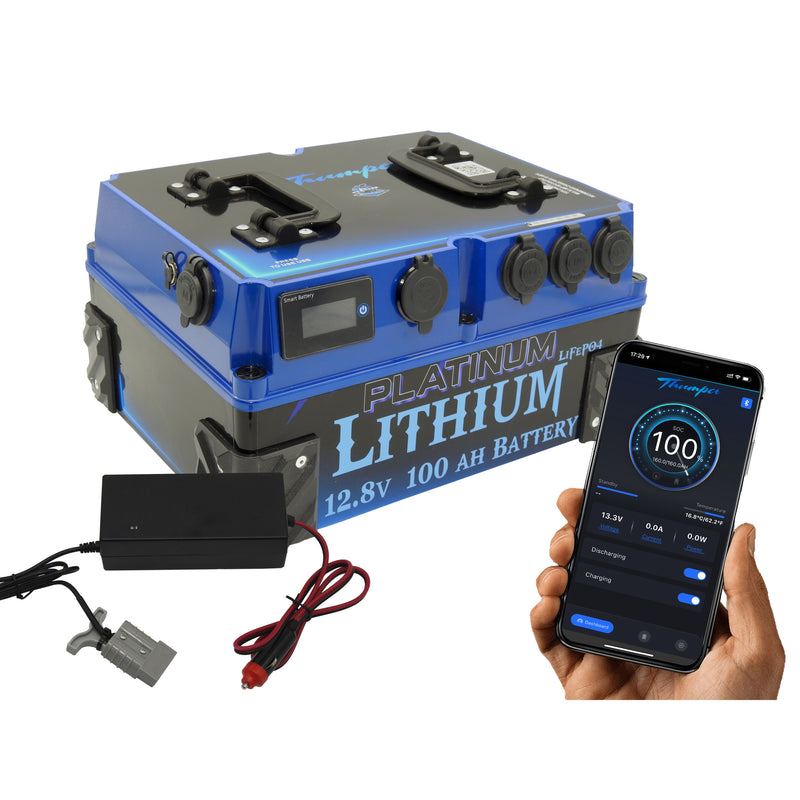

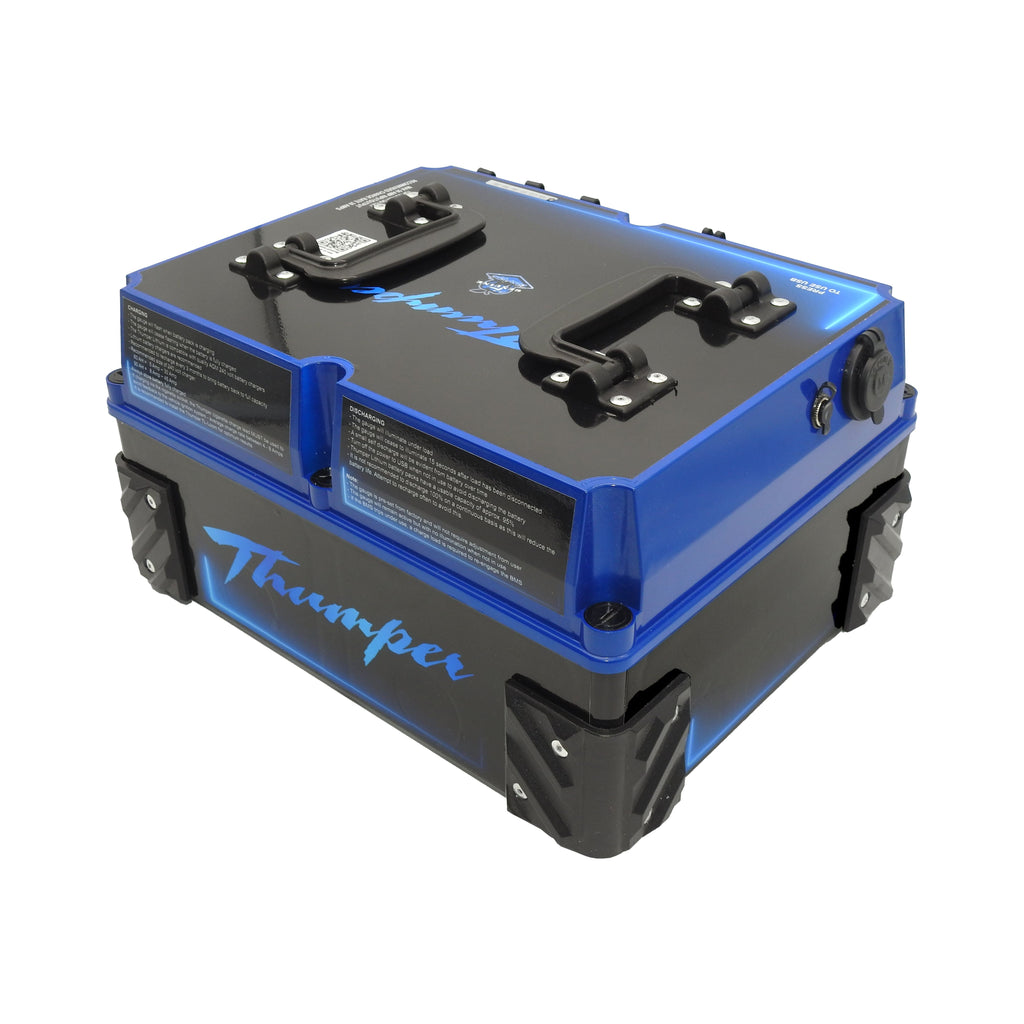

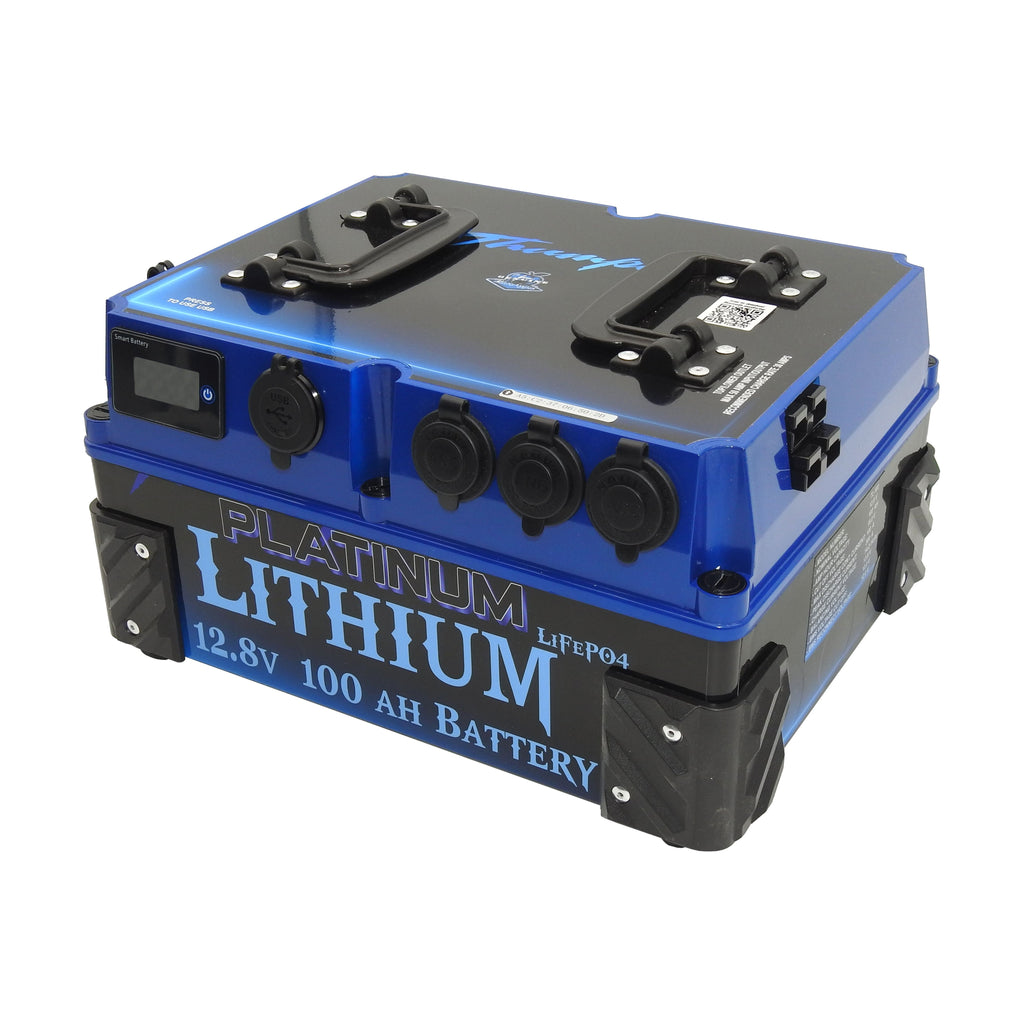

Thumper Lithium 100 AH Battery Pack
The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.
Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.
This package includes
| 1 x Thumper 100 AH Battery Pack (battery included) |
| 1 x Vehicle wiring loom for hardwired installation TUR-L(8mm) |
| 1 x 240 Volt Battery Charger 10 Amp - dedicated to Lithium charging |
Now with BLUETOOTH monitoring and 5 year warranty!
- Safe charging and discharging with over temperature protection
- Under voltage cut off protection
- Over voltage cut off protection
- Internal short circuit protection
- Smart Battery Gauge for quick battery reading
- Completely monitored via a FREE Bluetooth app!
- 100% usable battery capacity
The Thumper Lithium 100 AH Battery Pack is not suitable for Jump-Starting
We do offer a Jump start model HERE
_____________________________________________________________________________________
The Thumper Lithium 100 AH offers an impressive 100 AH of power, this particular pack will allow the user to run the average 50Lt compressor type fridge for over 5 days! This is almost 60% better run time compared to its AGM counterpart!
Equipped with virtually every socket you would ever need, along with a precision digital gauge for monitoring, this pack is one of the best options or a portable dual battery systems available on today's market!

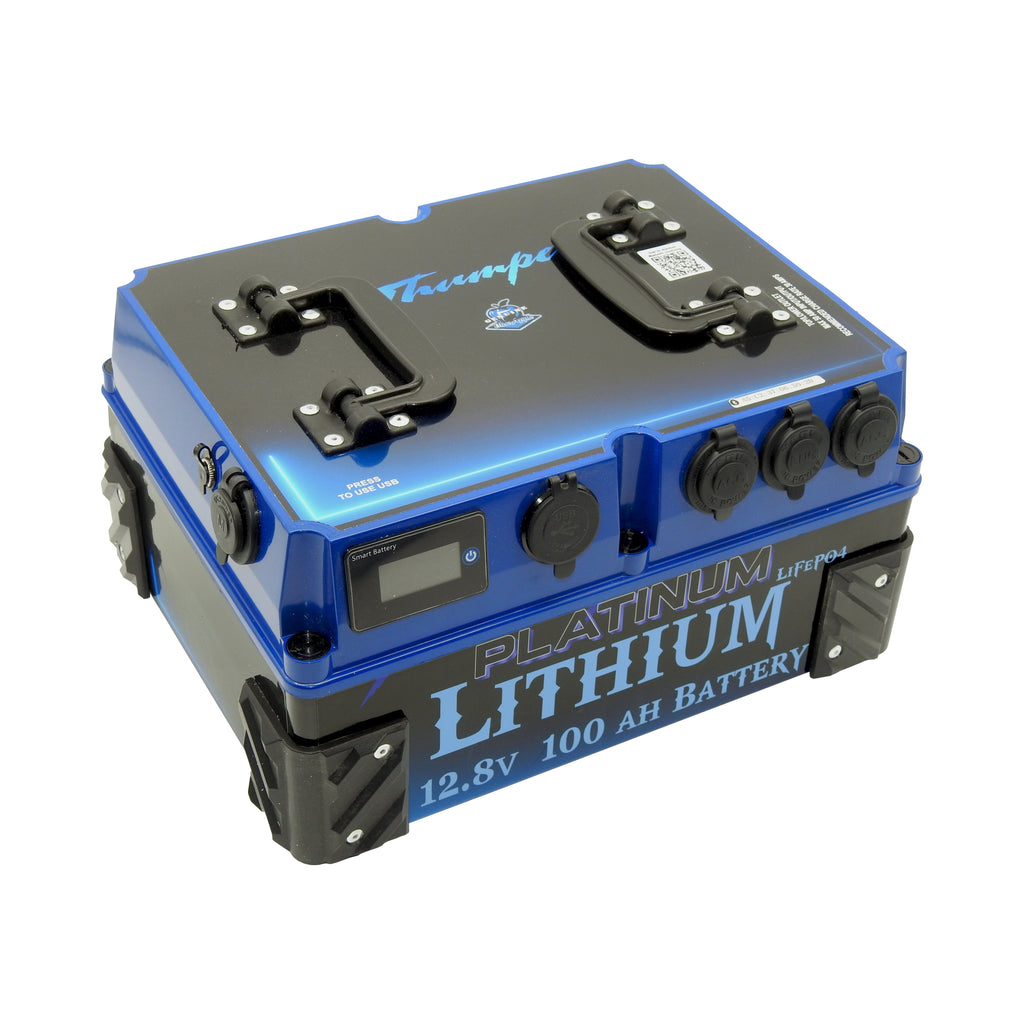

The unit is equipped with:
| 1 x Smart Battery screen | 2 x 50Amp Anderson (Max 50A) |
| 2 x Cigarette socket | 1 x Dual USB socket (Min. 2.4A) |
| 1 x Engel Fridge socket | 1 x Merit type socket |
| 1 x 2.1mm Input / Output | 2 x Automatic circuit breaker protection |
Specifications:
|
Product code |
BATL-100 |
|
Capacity |
100 AH |
| Package Includes |
1 x TUR-L (8mm) vehicle wiring loom 1 x 240 Volt Battery Charger 10 Amps |
|
MAX Discharge |
50 Amps via the 50 Amp Anderson |
|
MAX Input charge |
50 Amps via the 50 Amp Anderson |
|
Dimensions |
335L x 263W x 215H |
|
Weight |
12.8 kg |
|
Warranty |
5 years |
Charging:
The Thumper 100 AH includes the complete vehicle wiring loom (TUR-L) - 8mm wiring. The wiring loom is designed to separate the Thumper from the main starter battery when the vehicle ignition is off. It is recommended to still install this loom with models that are fitted with the DC charger.
The TUR-L uses an ignition activated relay. The relay will act to provide power to the charging system when the vehicle is running, and in turn, will isolate away from the main starter battery once the vehicle's ignition has been switched OFF.
Included with all components you will need for the vehicle installation, this charging system is provided in 8mm twin core cable option (75 Amp rating)
For more information on the TUR-L kit please see the link here
| 1 |
Relay mount (100 Amp Relay / Midi Fuse Holder / Midi Fuse)
|
| 1 |
6mt 8mm twin core (8B&S) automotive cable
|
| 1 |
Anderson to rear box wired in 8mm (optional to fit)
|
| 1 |
Anderson to Anderson 1mt connecting cable (8mm)
|
| 2 |
Pk5 zip ties
|
| 3 |
Fuse Tap options (Micro / Micro2 / Mini Fuse)
|
| 1 |
Assortment of lugs, cable joiners and screws
|

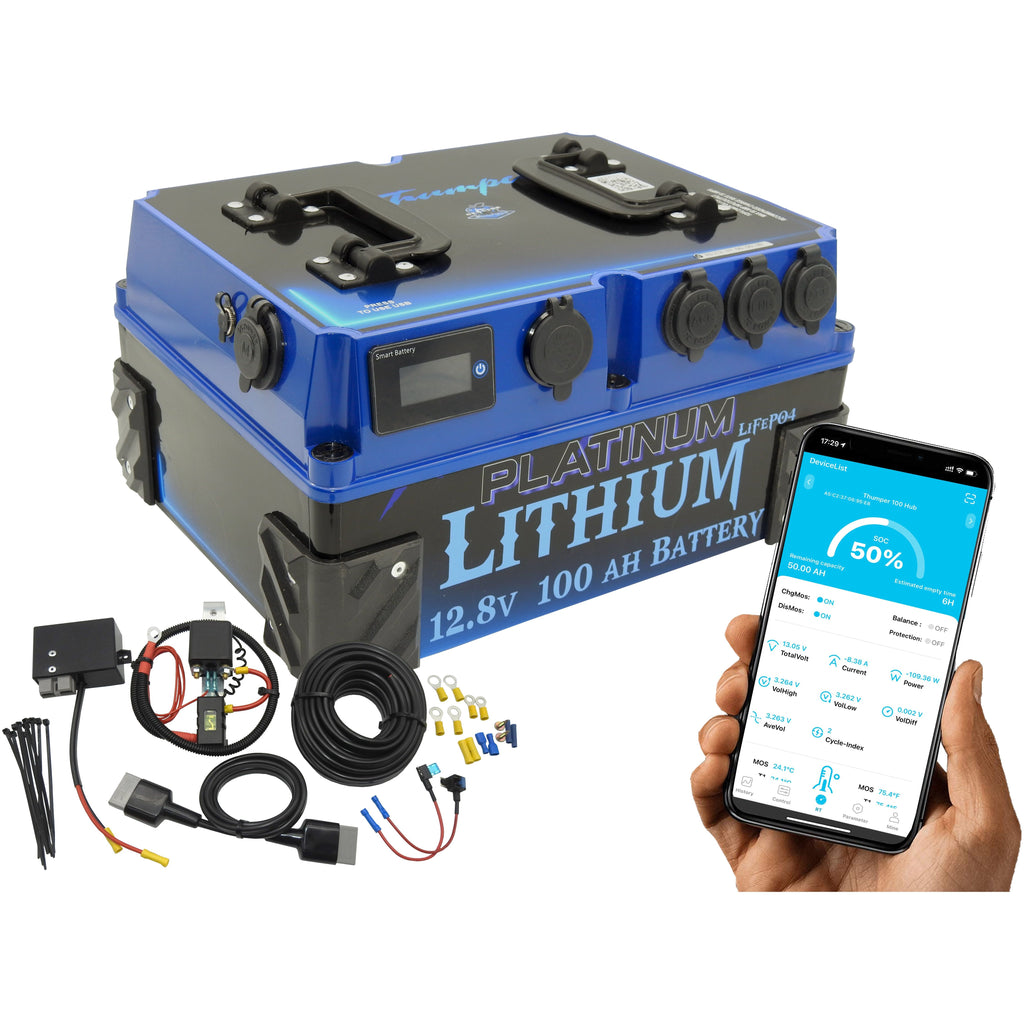

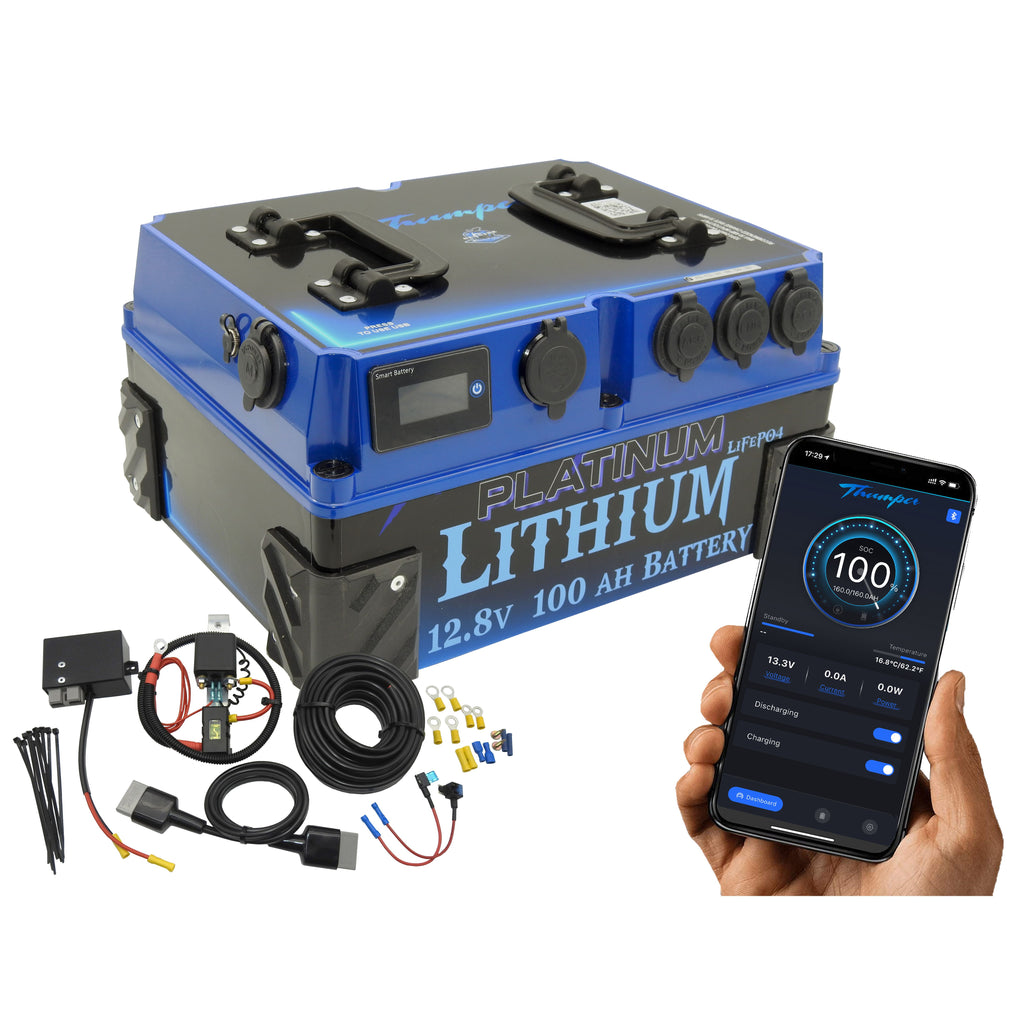

Image of TUR-L vehicle wiring loom
Can you charge from a cigarette socket?
It is not recommended to charge direct from a vehicle cigarette socket when charging lithium batteries as the Lithium chemistry does prefer a higher rate of charge than what the vehicle can produce on its own. It is therefore, recommended to use when possible a DC Battery charger.
Thumper offer a model of the 100 AH battery pack with the in built 25 Amp DC Charger. This model will allow you to harness 25 Amps from the vehicle's alternator when driving via a hard wired 8mm charge line (included).

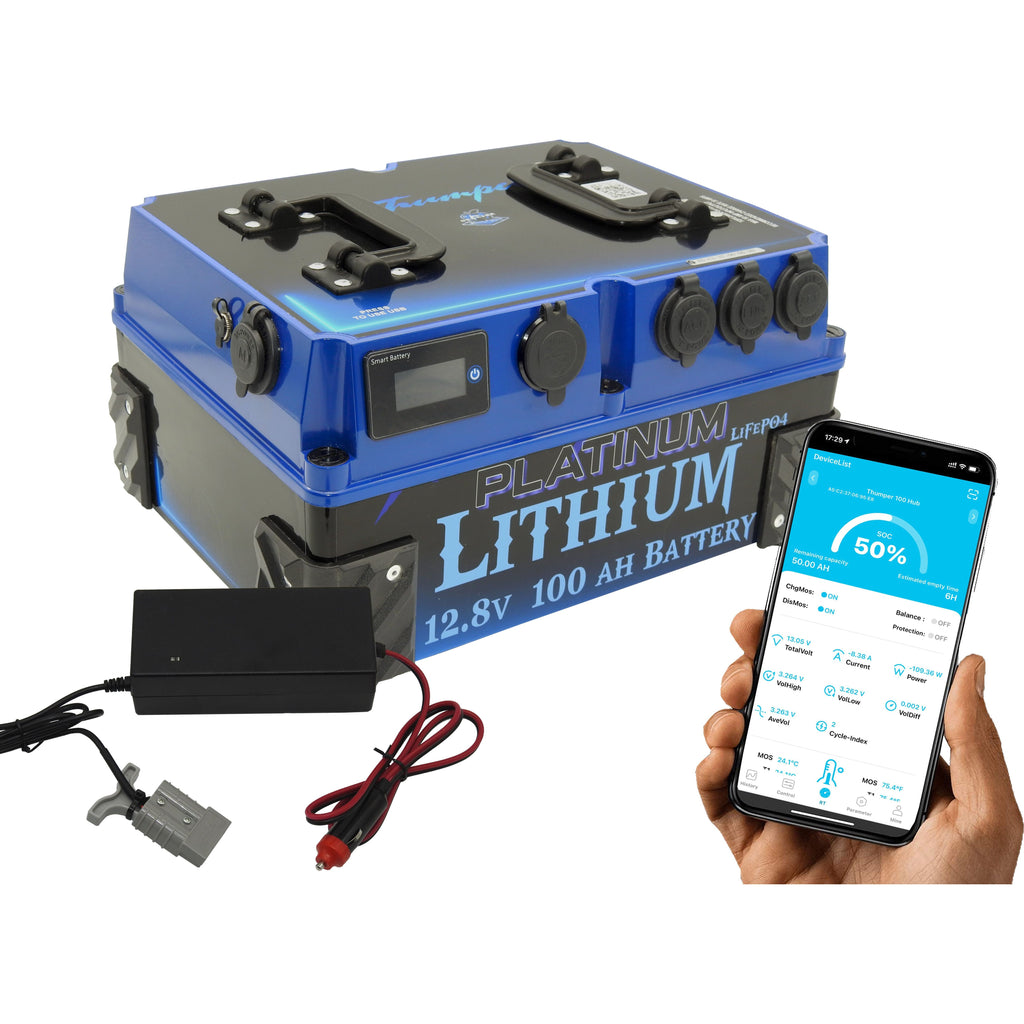

Alternatively, Thumper offer two options for IN LINE DC Chargers, which will allow you to connect directly into the cigarette socket of the vehicle and then into the Thumper battery Pack.
The In line DC Battery chargers are available in a 5 Amp model (LDC-5A) or 8 Amp model (LDC-8A). These chargers can be modified to use an Anderson connector to connect into your Thumper pack and straight into the vehicle's cigarette socket!
Charging from a cigarette socket will ultimately result in a slower rate of charge, as the cigarette socket is rated at a lower amperage and are normally wired in a lighter gauge cable. This is the reason these chargers are only rated at 5 Amps or 8 Amps.
|
Thumper Lithium 100 AH Battery Pack Average run - GUIDE 35 - 50Lt Compressor Fridge 0*C at 25*C Ambient Temperature |
| Capacity | Lithium run time | AGM run time |
| 100 AH | 140 HOURS | 83 HOURS |
| Discharged to 90% capacity at 11.8 Volts | Discharged to 80% capacity at 11.8 Volts |
 |
Bluetooth |

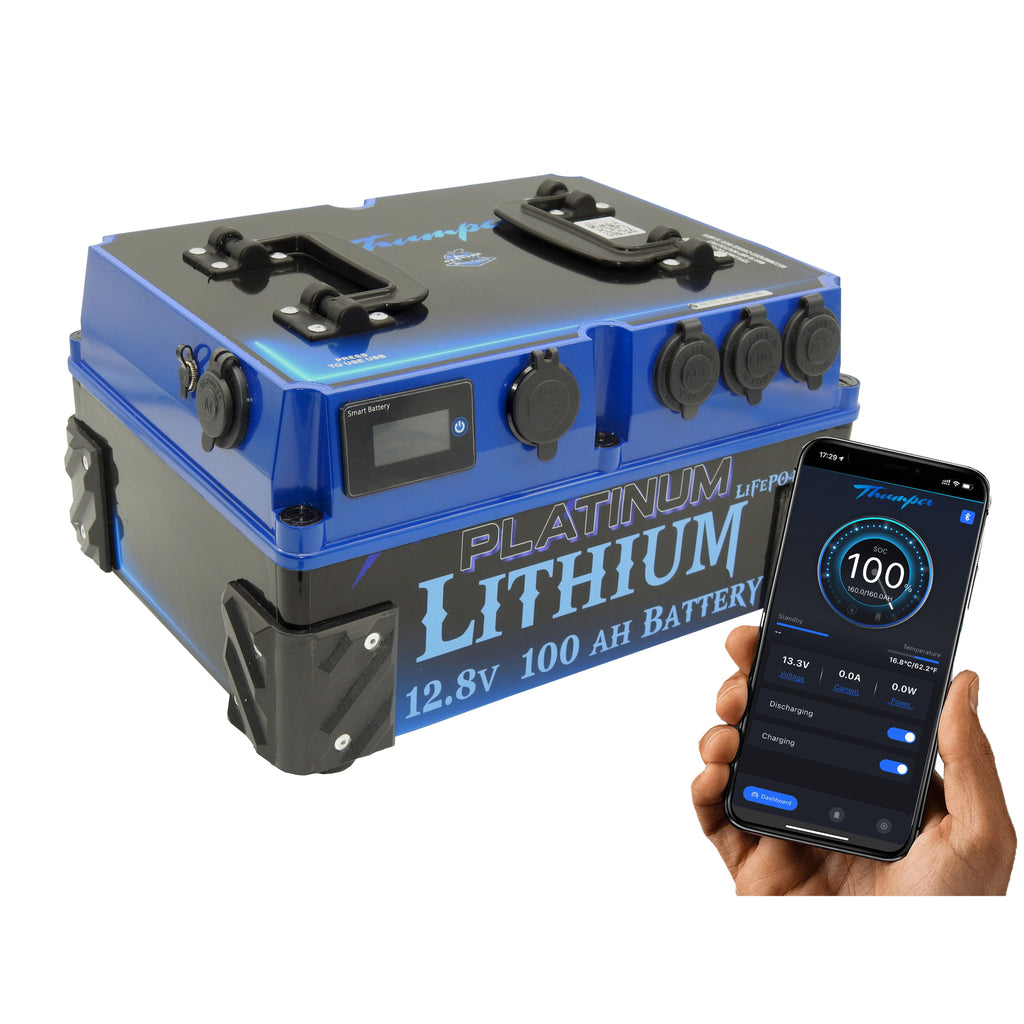

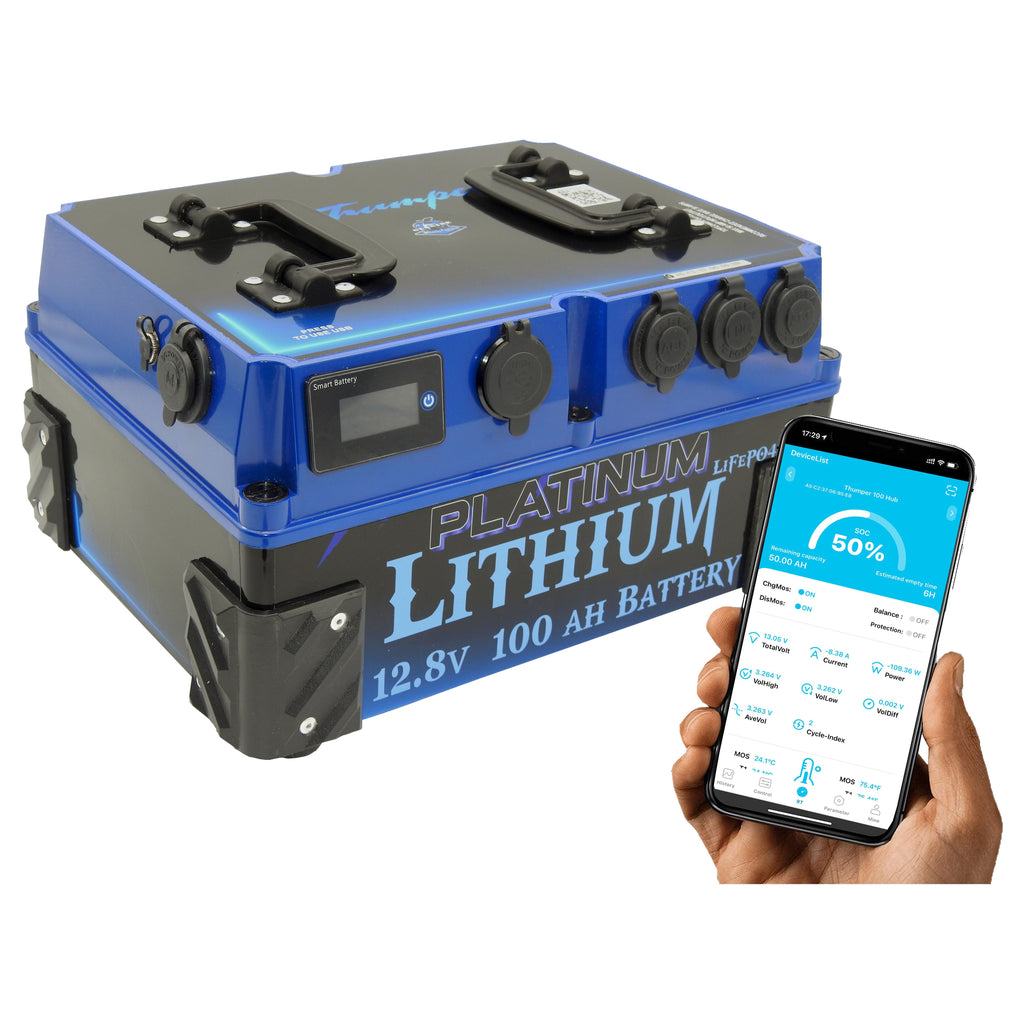

The Thumper Lithium Battery Pack is fitted with one of the most comprehensive Bluetooth monitoring Apps available on the market.
The App offers the ability to monitor and control:
|
|
Thumper offer a number of videos to help explain in more detail the operation of the Bluetooth App, however, a few key points are covered in this listing (videos to be uploaded soon).
For any technical advice regarding the App, we recommending contacting our team direct directly.
Bluetooth App | Home screen - explained:
Bluetooth App | Control Screen - Explained:
The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.
Simply go into the CONTROL panel of your Bluetooth App and press:
CHARGE SWITCH - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.
DISCHARGE SWITCH - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
