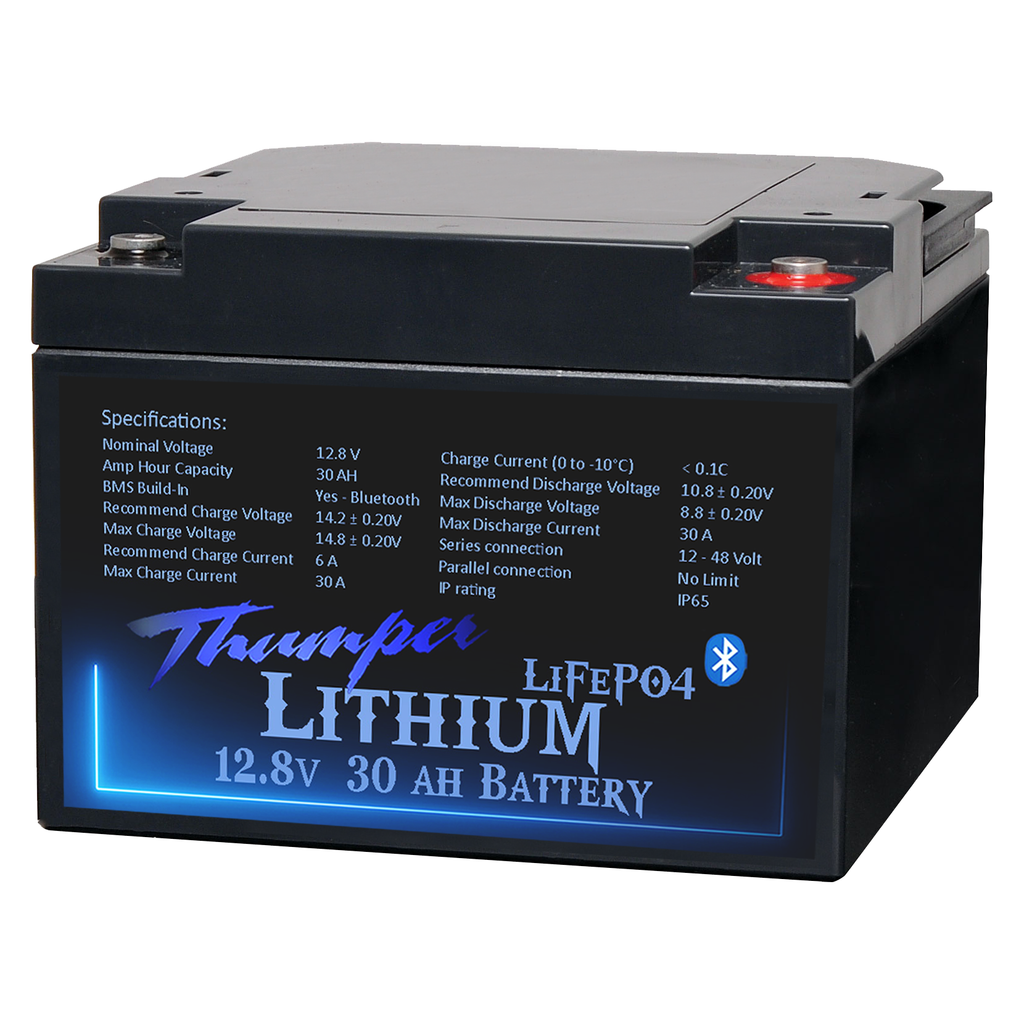

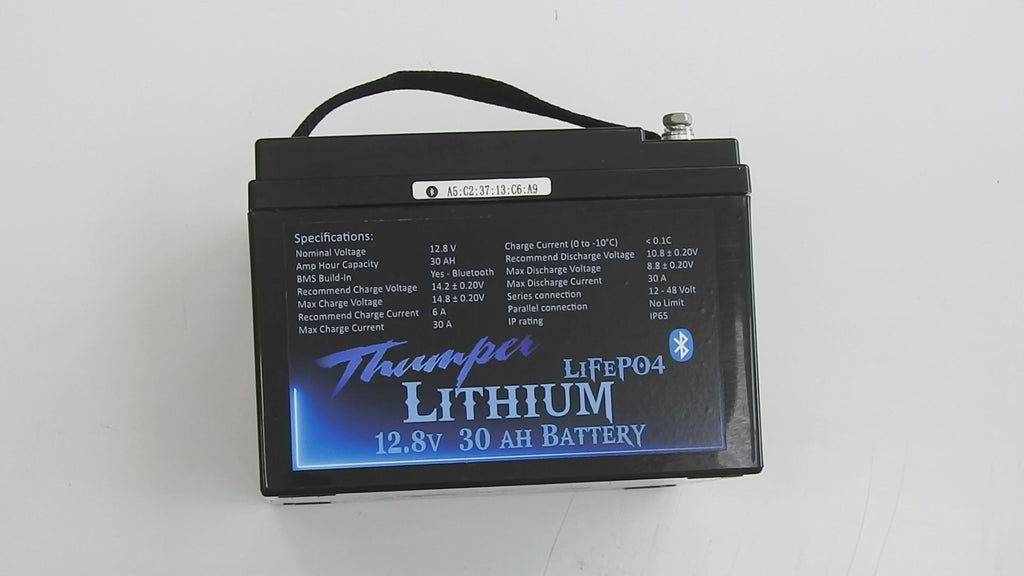

The Thumper 30 AH Lithium battery is the perfect choice for portable power. Extremely light weight with only weighing in at approx 3.6kg, the battery is ideal for camping power, UPS systems, running lighting and many other portable solutions.
Built with Bluetooth monitoring APP
The 30 AH has the ability to link unlimited parallel connections and will allow for a series link of up to 48 Volt MAX.
Back by a full 5 year manufacturing warranty, you can feel confident with the power of the Thumper Lithium.

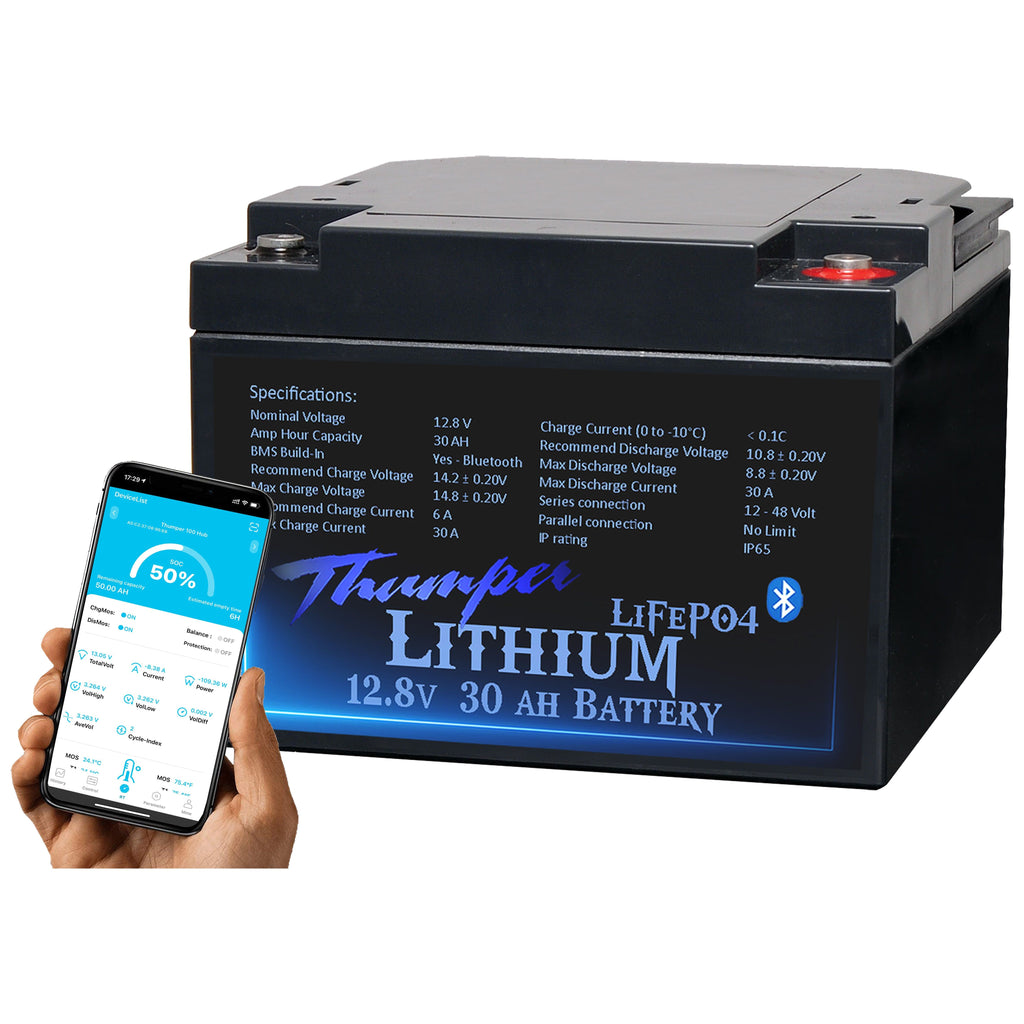

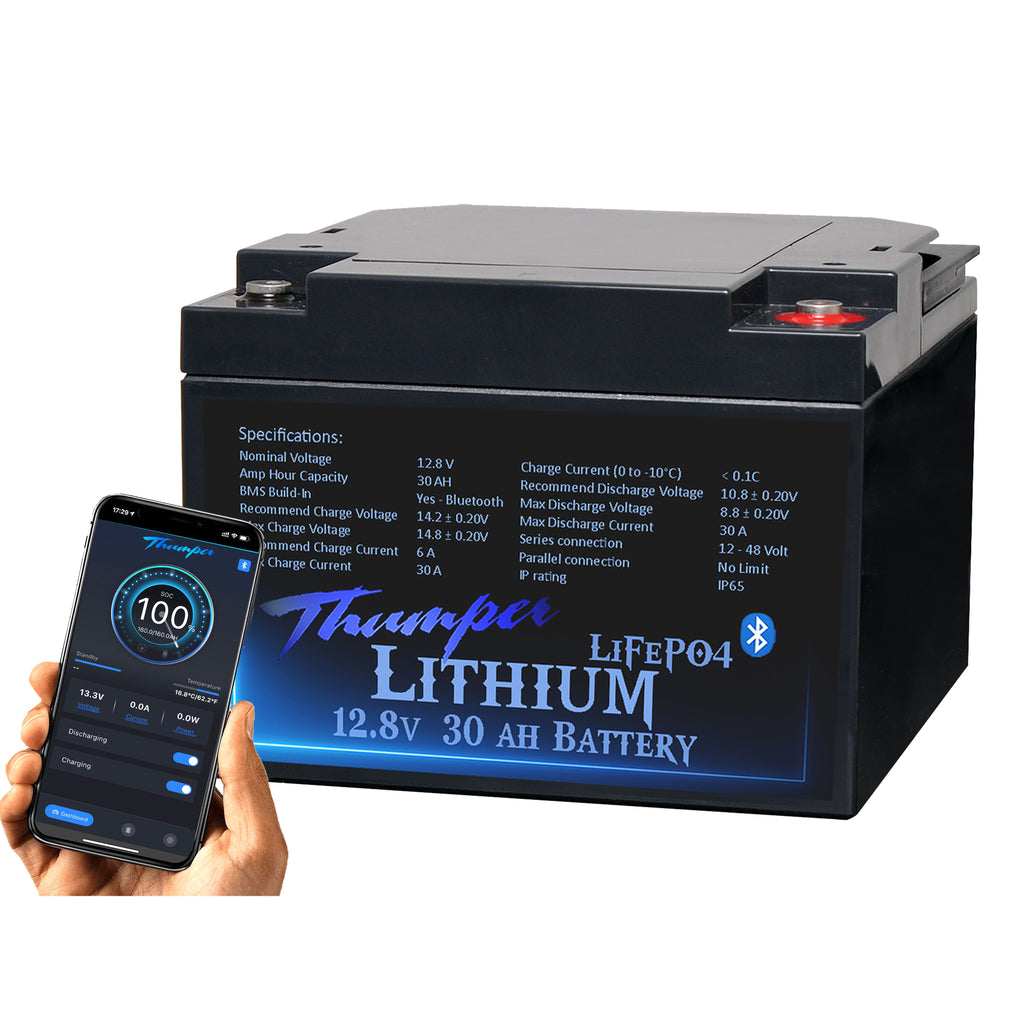

Monitor the battery with ease and without spending a fortune on added products with the Bluetooth app built within the battery! Simply download the FREE APP to monitor:
- Battery capacity
- Battery Voltage
- Percentage remaining capacity (Example: 0% - 100%)
- Battery charging current
- Battery discharge current
- Battery output disconnect
- Battery charge disconnect
- Number of cycles consumed
- Auto cell calibration
- Auto cell protection
|
- Estimated time remaining
- Estimated charging time
- AH capacity - Including remaining AH & AH consumed
- Total cell balancing
- High cell voltage
- Low cell voltage
- Cell voltage difference
- Monitoring of dual battery sensors
- Ability to parallel link and re-program AH capacity
|
Overview:
Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.
Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.
The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.
These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.
Specifications:
Part No.
|
TL-30BT
|
Battery Type
|
LiFePO4
|
Nominal Voltage
|
12.8 V
|
Amp Hour Capacity
|
30 AH
|
Energy Density
|
384 Wh
|
Dimensions
|
L 166 x W 175 x H 125 mm
|
Weight
|
3.6 Kg
|
Terminal type
|
M6
|
Case Material
|
ABS
|
BMS build-in
|
Yes - Bluetooth
|
Recommend Charge Voltage
|
14.2±0.20V
|
Max Charge Voltage
|
14.8±0.20V |
| Recommend Charge Current |
6 A
|
Max Charge Current
|
30 A
|
Charge Current (0 to -10°C)
|
< 0.1C
|
Recommend Discharge Voltage
|
10.8±0.20V |
| MAX Discharge Voltage |
8.8±0.20V |
| MAX Discharge Current |
30 A
|
Pulse Discharge Current
|
90A / 3S
|
Efficiency - round trip
|
> 99.5%
|
Self Discharge per Month
|
< 3%
|
Max 4 - series connections
|
12-48V
|
Parallel connections
|
No Limit
|
Case IP rating
|
IP65
|
Shipping Classification
|
UN3480, CLASS9
|
Download Specification sheet HERE
