Description

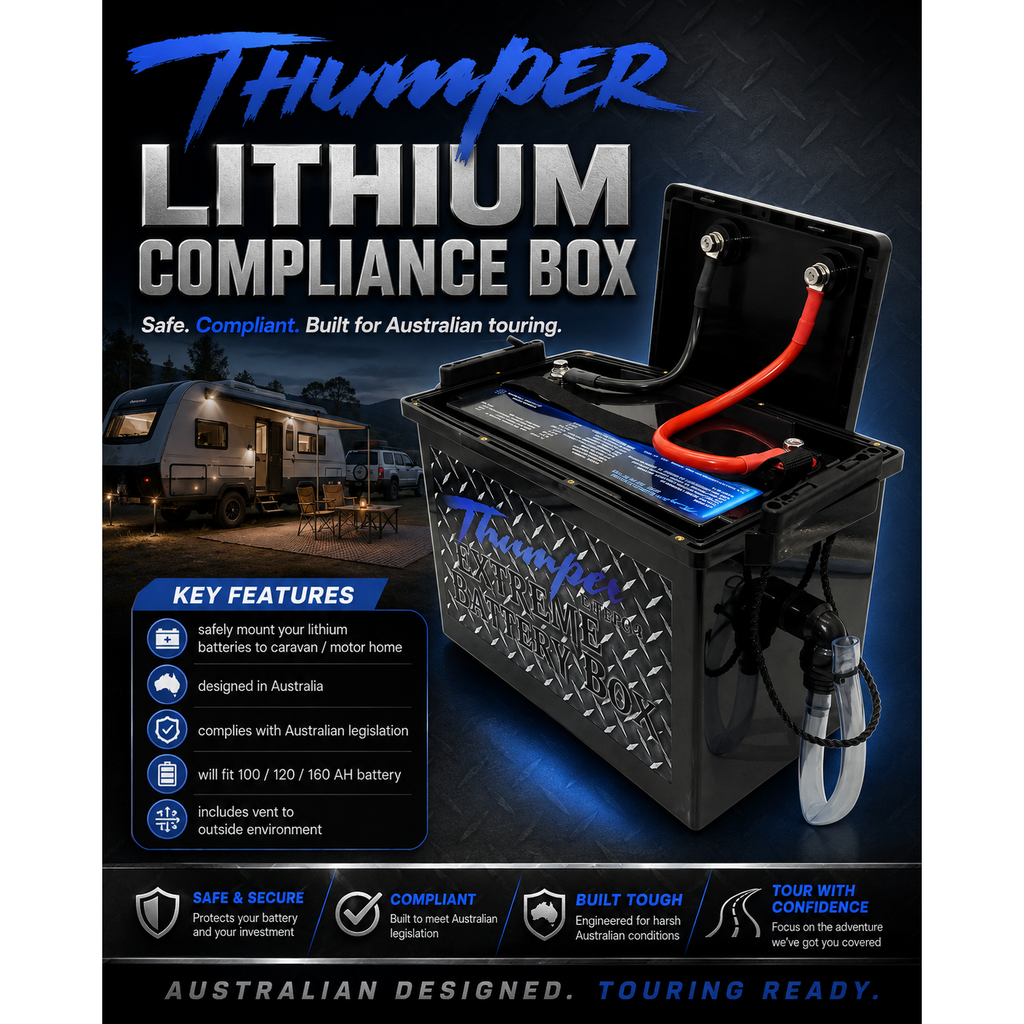

This unique storage box is designed for the installation of Lithium LiFePO4 batteries.
Designed to comply with the current Australian Lithium installation requirements, the Thumper Lithium storage box offers an easy option for installing lithium batteries in the Caravan or Motorhome.
Built using a sealed proof container and equipped with an external vent, it has never been easier for installers to complete Lithium installations in the Caravan with the use of this safe and compact battery storage box.
The Thumper Lithium storage box is compact and offer multiple options for mounting, including the option to securely mounting to the vehicle via the bottom of the box, or the option to upgrade to a purchase of a mounting tray with hold down bolts.
The Thumper Lithium storage box is designed to fit Lithium batteries with the dimensions of 335 x 175 x 250mm. This typically will fit batteries of the following size, including the Thumper range of Lithium batteries: 100AH / 120AH / 160AH lithium battery.
Steps:
- Securely mount the Lithium storage box to the Caravan / Motorhome using either the fastening points at the bottom of the box, or via the use of an external mounting tray (available to purchase as an optional extra)
- Fit the Lithium battery within the Thumper storage box with the battery terminals at the rear of the box (vent on RHS of box)
- Connect your existing battery terminals to the Thumper storage box cables (positive to RED cable / negative terminal to BLACK cable)
- Run the vent external to the Caravan / Motorhome
Specifications:
| Part No | TL-SB |
| Material | ABS plastic |
| Dimensions (externally) | L 340mm (lower case excl vent) | 384mm incl. vent |
| L 386mm across lid handles | |
| x W 205mm x H 270mm | |
| Dimensions (internally) | L 335mm x W 175mm x H 250mm (incl lid) |
| Weight (no battery) | 2.35kg |
| Internal cables | Yes, pre-fitted 25mm sq, ready to fit to battery terminals |
| Hose size | 13mm |
| Warranty | 3 years |
