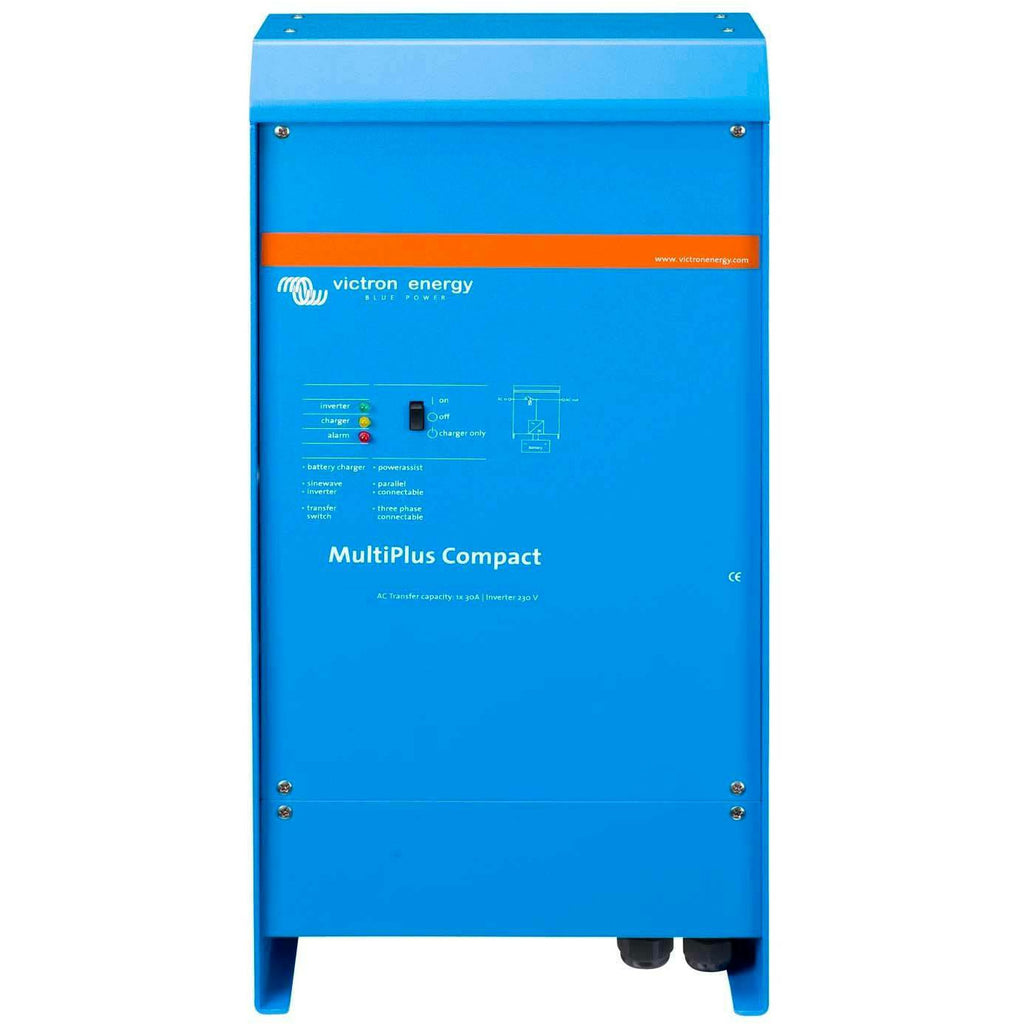

Victron MultiPlus Compact 230-volt AC, 12-volt 2,000-VA inverter charger with 80-amp battery charging and 30-amp AC transfer capability compatible with all batteries including Lithium.
A powerful true sine wave Inverter combined with a sophisticated battery charger featuring adaptive charge technology and a high-speed AC transfer switch, the MultiPlus Compact delivers advanced features which provide a range of new applications.
- Uninterrupted AC power
- PowerControl – Dealing with limited generator or shore side power
- PowerAssist – Boosting the capacity of shore or generator power
- Programmable relay
Unit Weight: 15kg
Battery Charger Size: 80 Amp
Battery Voltage: 12 Volt
Change over switch:
Multiplus Compact inverter chargers are available in models ranging from 800VA to 2,000VA. The generator assist supports air conditioning with smaller generators which makes it perfect for caravans and RV's.
Single AC Input
The Compact can be connected to a single AC source. When the source is not available, the inverter can take over.
Single AC Output
The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Compact takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Loads that should not discharge the battery, such as air-conditioning or a water heater should be connected in such a way to avoid inadvertant battery discharge. This can easily be accomplished by a simple relay circuit that is activated when AC shore power is present.
Unique PowerAssist feature
The Compact will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Remote Control Panel
An optional remote control panel allows operation of the compact from any location.
Two AC Outputs
The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).
Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.
PowerControl -Dealing with limited generator, shore side or grid power
The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist -Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems.Loss of mains detection software is available.
In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
On-site Monitoring and control
Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
Several options are available: Battery Monitor, Multi Control Panel, Color Control GX or other GX devices, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control
Color Control GX or other GX devices.Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed and settings can be changed remotely
