Description

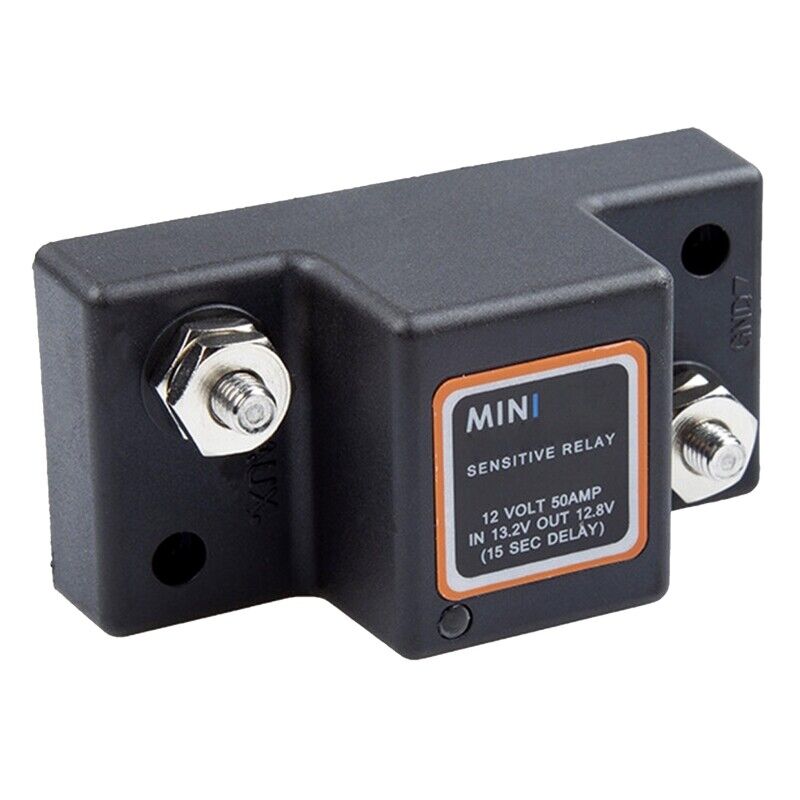

Isolator Voltage Sensitive 12V 50A for UTVs ATVs
Features: A voltage sensitive (VSR) is the best way to ensure you can for get your dual-battery vehicle started.
The VSR connects and disconnects the auxiliary and the starter according to the current charge level while the engine is running, when the starter reaches 13.2 volts, the VSR will start after 15 seconds and the LED light will illuminate. This means that both batteries are connected and the system is running. Once the vehicle system is turned the two batteries will be disconnected when 12.8 volts is reached after another 15 seconds, allowing your main to restart safely.
Voltage: 12V.
operating current: 50A.
for current: 70A.
Specifications: Material:Metal
Current consumption charging: 150MA
Current Consumption Standby: 1.5MA
Insertion voltage: 13.2V
Cut voltage: 12.8V
Breakaway Delay: 15 seconds
for Protection level: water resistant for protection

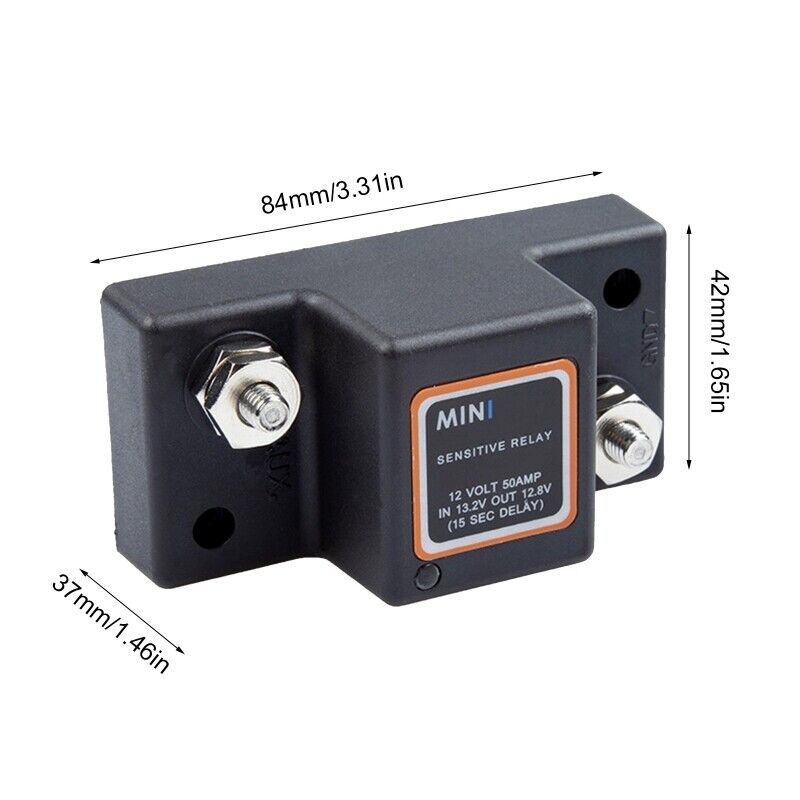

Size:Approx.84x42x37mm/3.31x1.65x1.46in
Net Weight:113g
Package Includes: 1x Isolator
Features: A voltage sensitive (VSR) is the best way to ensure you can for get your dual-battery vehicle started.
The VSR connects and disconnects the auxiliary and the starter according to the current charge level while the engine is running, when the starter reaches 13.2 volts, the VSR will start after 15 seconds and the LED light will illuminate. This means that both batteries are connected and the system is running. Once the vehicle system is turned the two batteries will be disconnected when 12.8 volts is reached after another 15 seconds, allowing your main to restart safely.
Voltage: 12V.
operating current: 50A.
for current: 70A.
Specifications: Material:Metal
Current consumption charging: 150MA
Current Consumption Standby: 1.5MA
Insertion voltage: 13.2V
Cut voltage: 12.8V
Breakaway Delay: 15 seconds
for Protection level: water resistant for protection
Size:Approx.84x42x37mm/3.31x1.65x1.46in
Net Weight:113g
Package Includes: 1x Isolator
