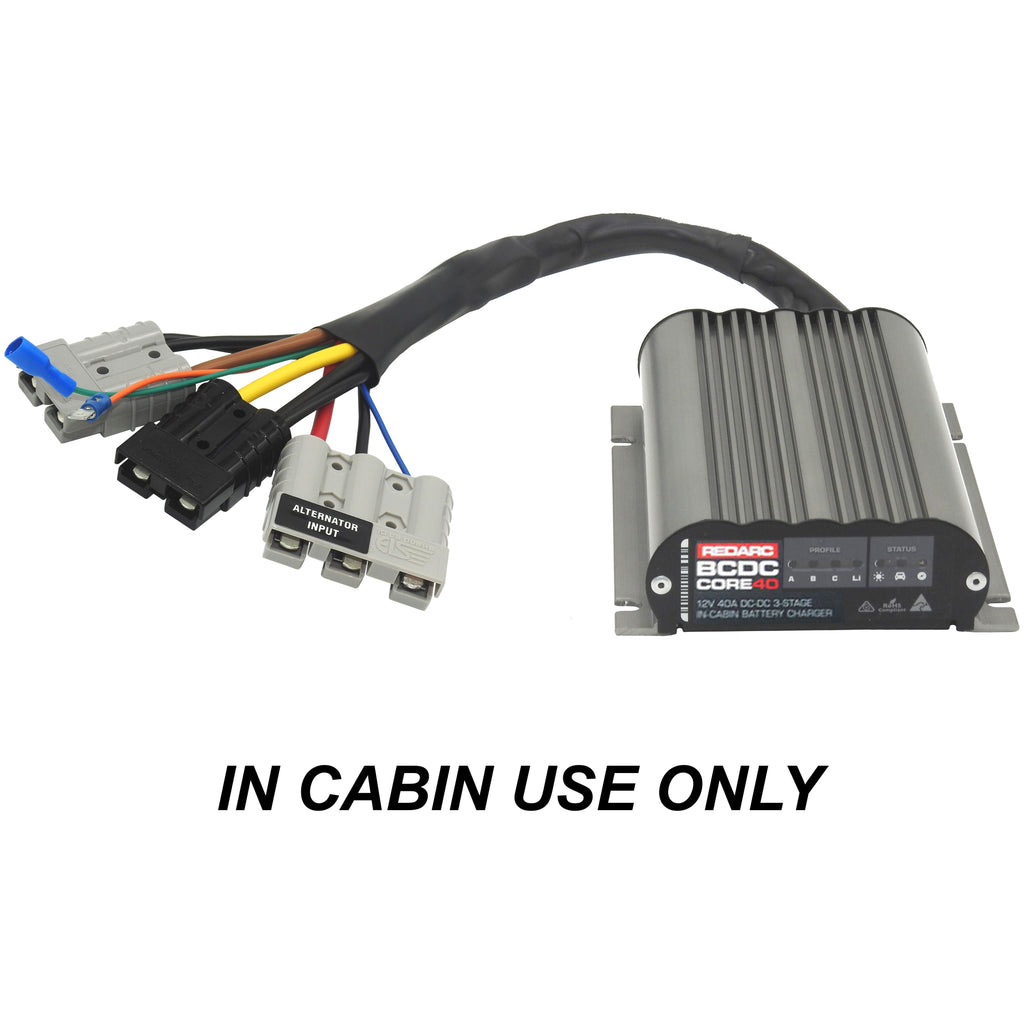

Note: This model has been designed as a strictly IN CABIN USE only model. It is not waterproof and is not advised to use in an environment exposed to water or moisture. Recommended use would be inside a caravan or in the vehicle.
_______________________________

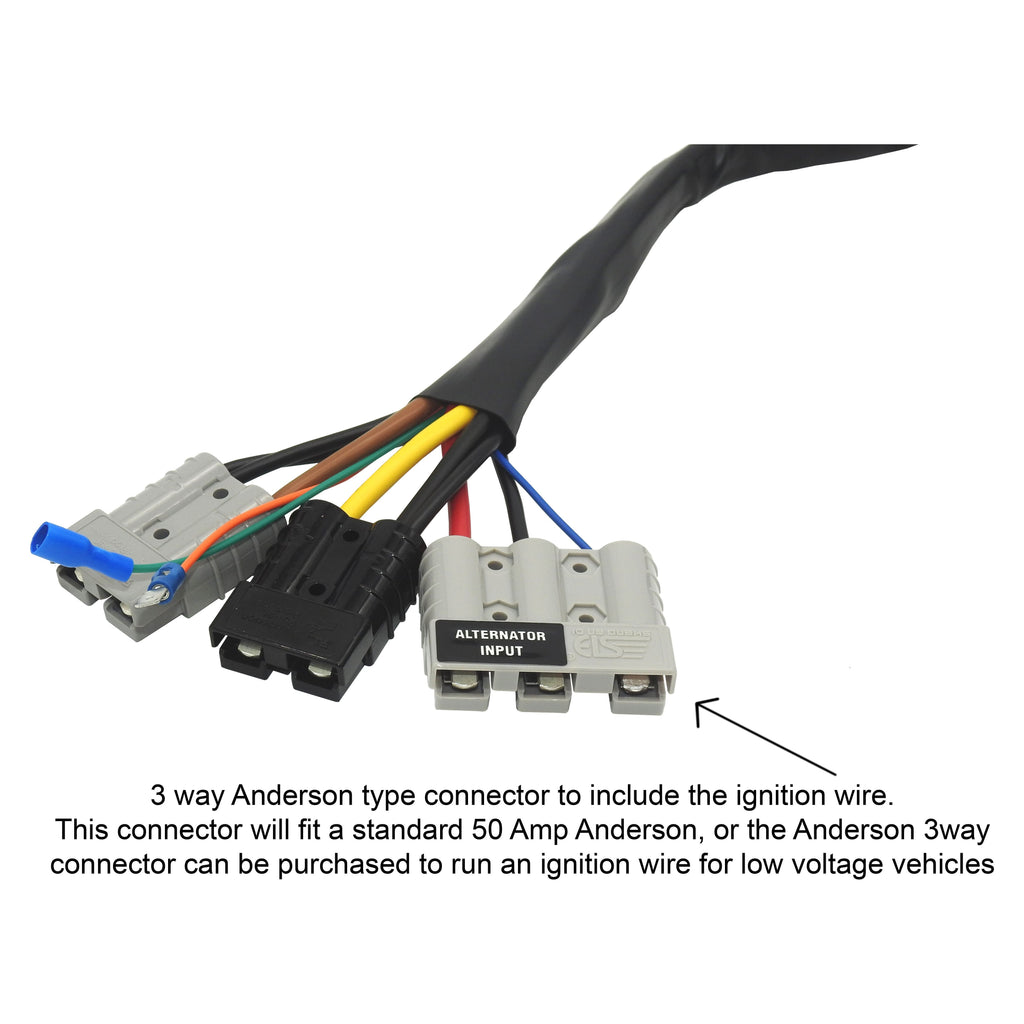

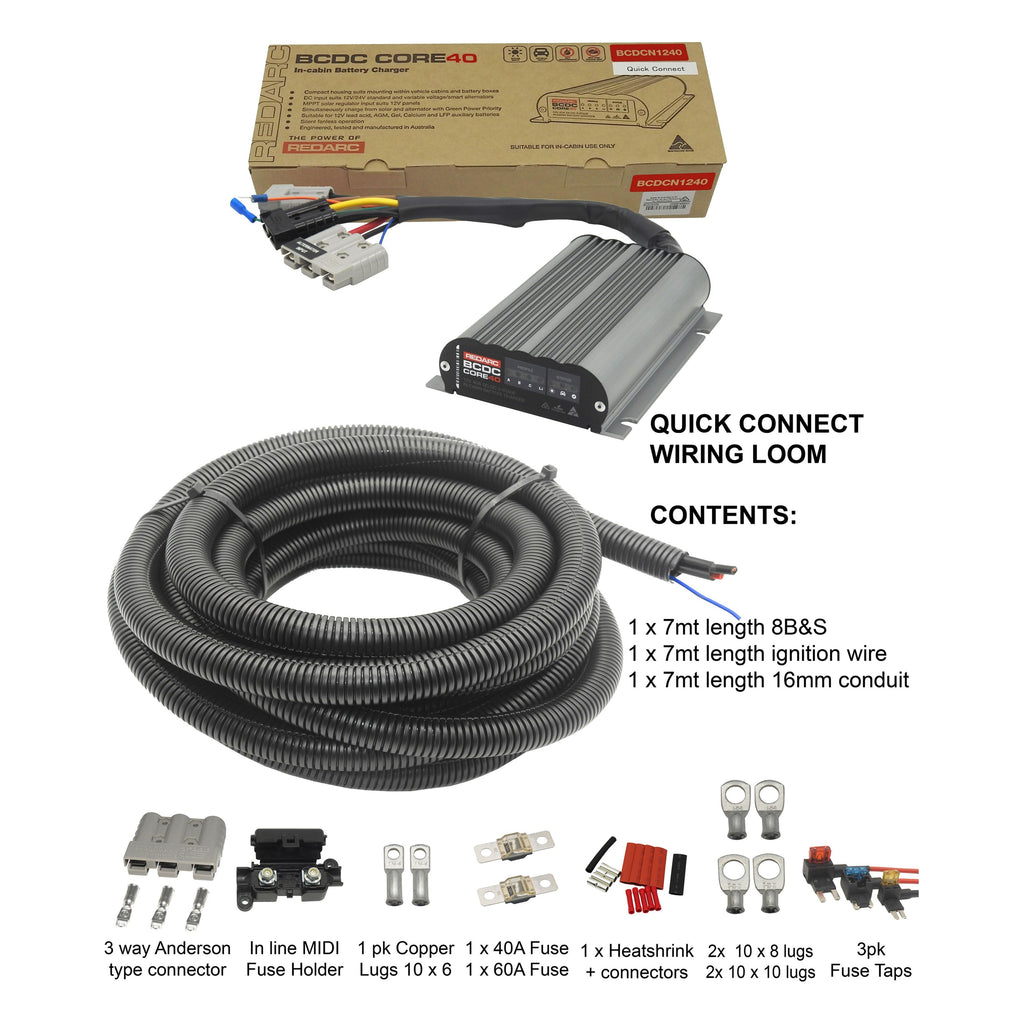

Designed for easy use, the Redarc Quick connect will allow you to easily disconnect or reconnect the BCDC unit with just a click of an Anderson connector!
Fitted with Genuine Anderson connectors:
- Input from vehicle (Red wire into Grey Anderson)
- Input from unregulated solar panel (Yellow wire into Black Anderson)
- Output to secondary battery (Brown wire to Grey Anderson)
- Spade terminals (to easily change between the battery chemistry)
_______
_______

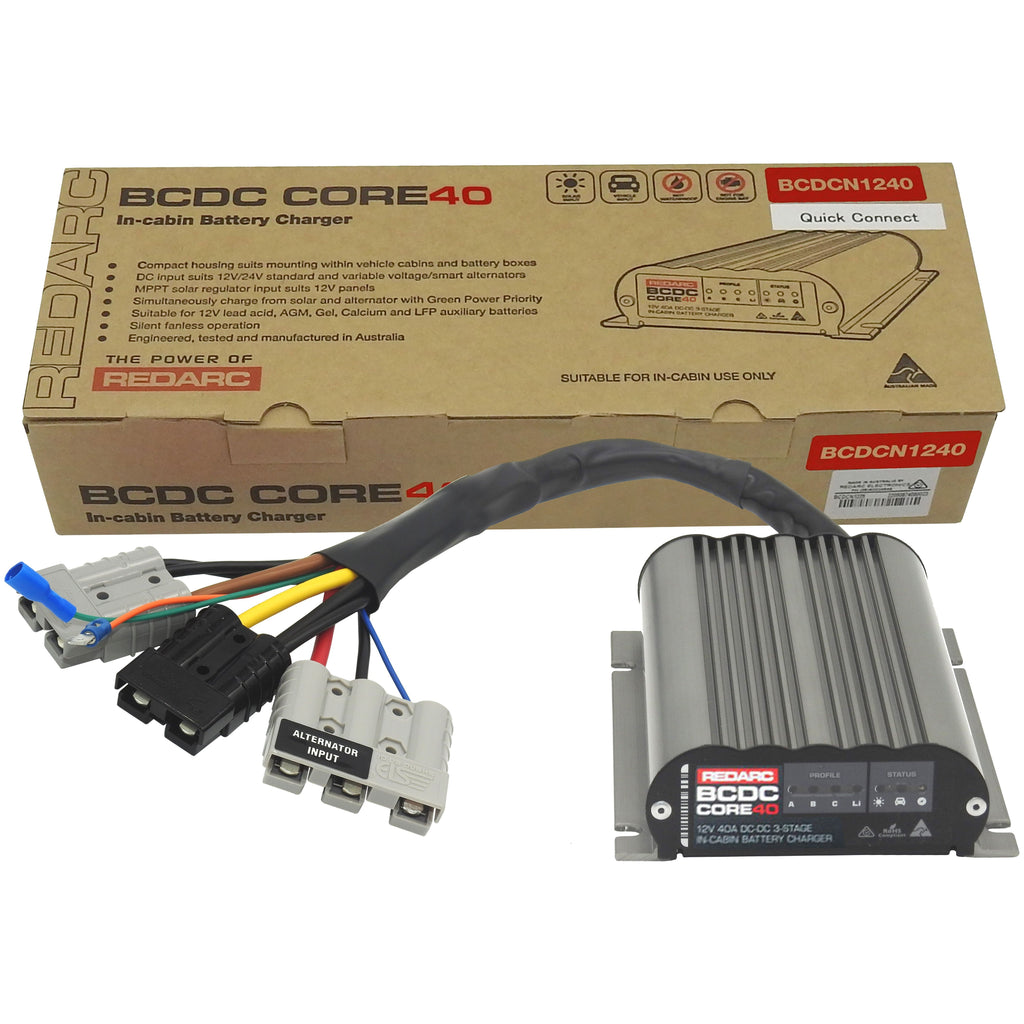

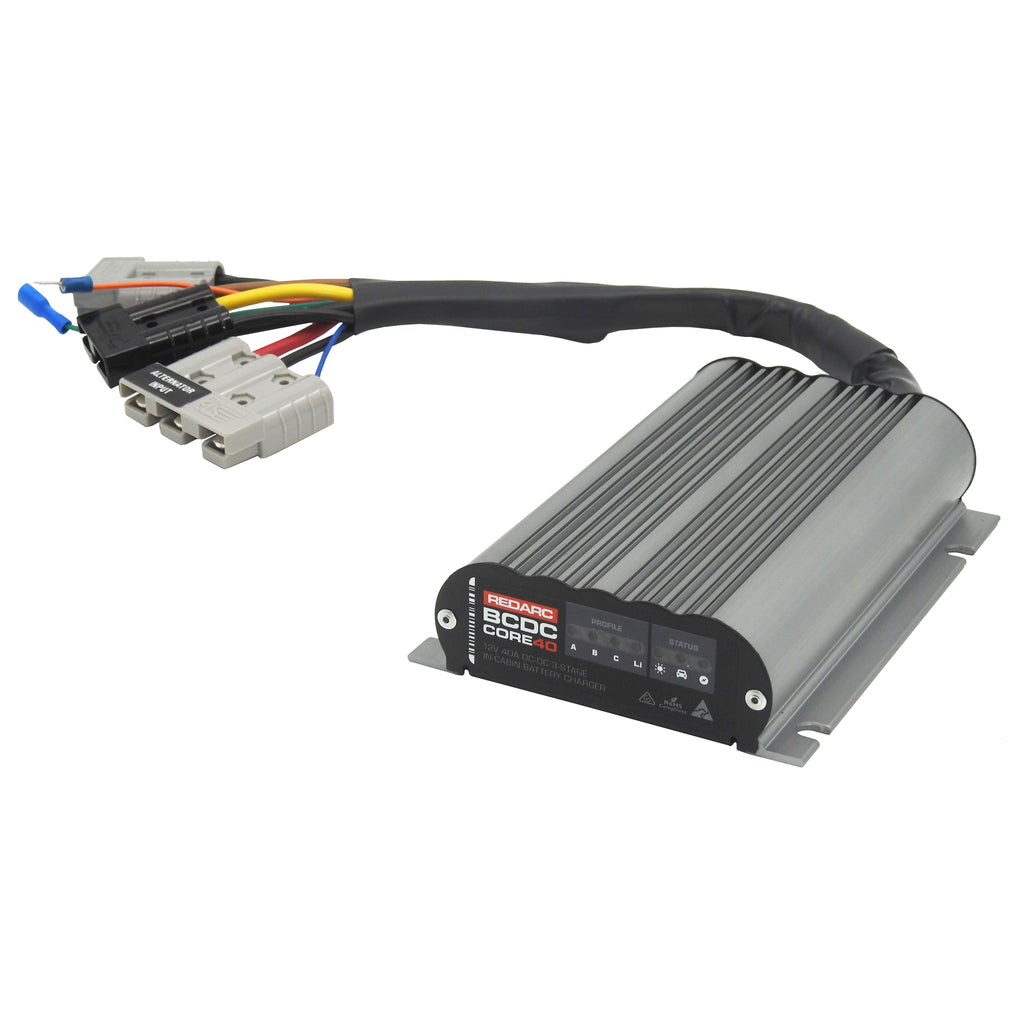

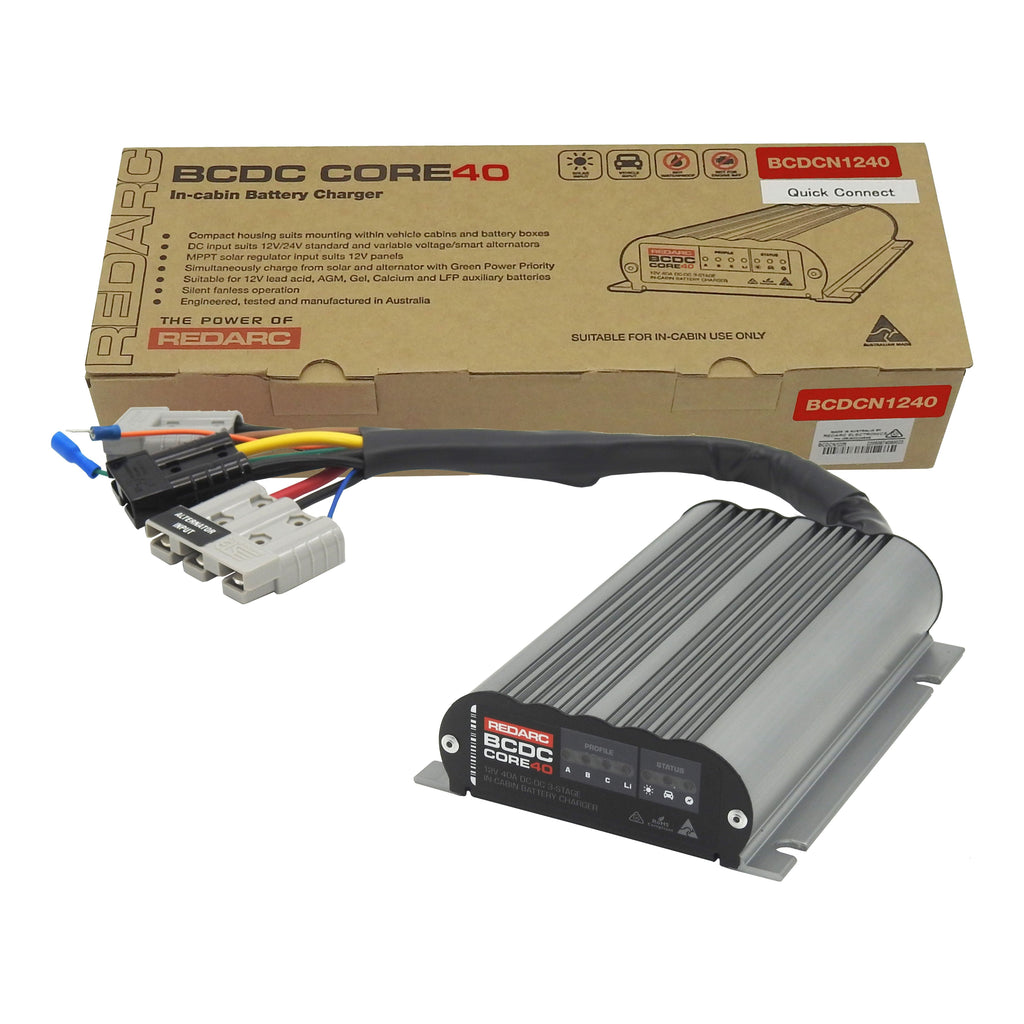

REDARC's BCDC Core 40A DC to DC In-Cabin Battery Charger is the next evolution of the legendary BCDC platform that has been powering off-grid adventures for over 10 years.
The BCDC Core is the perfect DC to DC charging solution for in-cabin, canopy, or battery box setups where dust and weatherproofing isn’t required. Each BCDC Core features REDARC’s tried and tested dual input DC charging tech plus an MPPT solar regulator and Green Power Priority all in the familiar and compact BCDC form factor. These features allow the BCDC Core to efficiently charge from both the alternator and solar simultaneously, ensuring maximum charge capacity no matter the situation.
Looking for a DC-DC Charger for an under bonnet installation? The REDARC BCDC Classic range in 25amp, 40amp and 50amp models could be what you're looking for.
Max Charge Efficiency
The BCDC Core features a Maximum Power Point Tracking (MPPT) solar regulator and 'Green Power Priority'. With these features the BCDC Core will charge from both solar and the alternator simultaneously, maximising its charge rate and minimising the load on your alternator, saving fuel.
Compact & Silent
With no loud fans or relays and a small form factor, the BCDC Core can be tucked away, leaving room in the cabin for more important things. Don't ruin the look of your interior with bulky electronics. Hide it under the rear floor, behind a side panel or under the seats and make your power set up look like it was meant to be there.
Lithium Ready
With chemistry specific charging profiles, including lithium the BCDC Core ensures your batteries are ready for your next adventure. The award-winning technology in the BCDC Core has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*
As a guide the BCDC Core 40A is typically used for lead acid battery banks over 200Ah and lithium batteries over 100Ah. Check the manufacturer’s data for your battery and ensure that the ‘Continuous Current Rating’ of the charger does not exceed the manufacturer’s recommended maximum charging current. For smaller batteries, REDARC recommends the BCDC Core 25A.
*Large capacity battery banks may require a few cycles to fully charge.
Backed by the Best
The BCDC Core is designed, tested and manufactured in Australia and is backed by our leading technical support and national REDNetwork certified installer network.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
Suitable for in-cabin and canopy installations only
Compact form factor
Simultaneous DC and solar charging with Green Power Priority
Maximises the performance and life of your auxiliary battery
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
Suitable for use on vehicles with conventional alternator charging systems
Input Charge
Simultaneous vehicle and solar
Installation Type
In-cabin only
Input (Operating) Voltage
9 - 32VDC
Output System Voltage
12VDC
Maximum Charging Voltage
15.3V
Output Current Rating (Cont.)
40A
Input Fuse Rating
60A
Output Fuse Rating
60A
Type Approval
E-Mark
Warranty
2 Years
Standby Current Draw
<8mA
Output Power
600W
Width (mm)
120
Height (mm)
37
Length (mm)
165
Weight (kg)
0.9
