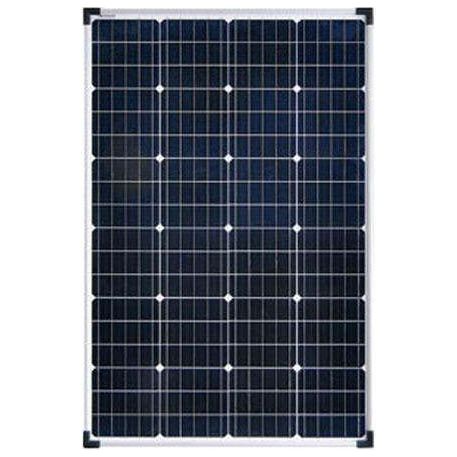

This quality 110W 12V monocrystalline solar panel module is designed for direct connection to a solar charge controller for use in remote power systems. This size is commonly used in caravans, 4WDs and trade vehicles to provide battery backup maintenance, allowing low voltage appliances to be powered off the connected battery system. It is constructed with an extruded aluminium framing and tempered dust resistant glass panel for installation in the most demanding of Australian conditions. Backed by a 25 year output warranty and a 5 year manufacturer defect warranty these panels are manufactured to a high standard by one of the worlds leading suppliers since 1992.
Typical applications: - Power for remote devices - Auxiliary battery charging in 4WD's, caravans and trade vehicles - Electric fence battery banks - Remote sensors and monitoring - Battery powered lighting systems and much more.
Typical applications: - Power for remote devices - Auxiliary battery charging in 4WD's, caravans and trade vehicles - Electric fence battery banks - Remote sensors and monitoring - Battery powered lighting systems and much more.
- Maximum power: 110W
- Nominal voltage: 12V
- Short circuit current (ISC): 6.6A
- Open circuit voltage: 21.6V
- Maximum power current (IMP): 6.16A
- Maximum power voltage: 17.8V
- Connection: MC-4 Plug

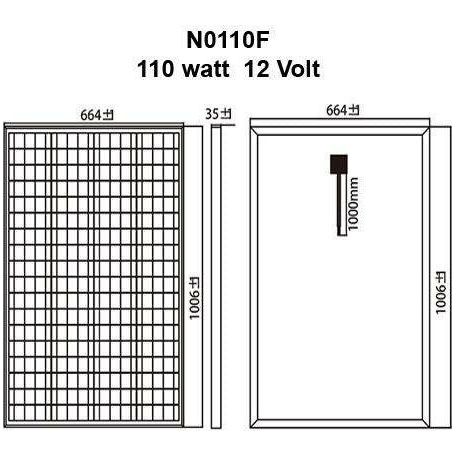

- Dimensions: 664 x 1006 x 25 mm
- Operating temperature: -40°C to +85°C
- Shipping Weight: 7.25000Kg
- *Specifications are subject to change without notice
